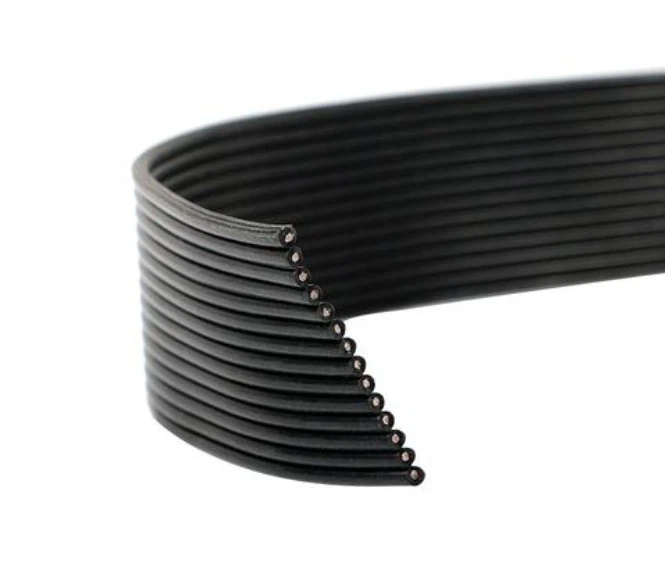

Due to the continuous improvement of people's living standards in recent years and their desire for daily necessities and high-tech products, these products also have higher requirements for electronic signal transmission and internal electronic connections at high frequencies; Ordinary wiring cannot meet the requirements of such products. Therefore, the R&D personnel of Tiefulong Company developed a parallel wiring with fluorocarbon resin as the surface material based on the original material application research and development, through a large number of repeated sample tests.
Product Features
The dielectric constant of fluorocarbon resin ribbon cables ranges from cryogenic to maximum operating temperature. The wide range of ultra-high frequency from 50Hz to 1010Hz shows minimal variation and is very stable; The variation of dielectric loss with temperature also has little impact;
Fluorocarbon resin cable has high volume resistivity and surface resistivity, generally greater than 1015 Ω· m, and changes little with temperature, and is not affected by water and moisture; Arc resistance greater than 165s;
Operating temperature -85~+200 ℃, voltage 30~300V Rows 2~40, specifications 32AWG~24AWG:
Due to the excellent performance of this type of cable, it can completely replace PVC and other materials such as UL2651 cable.
Application Fields
Fluorocarbon resin insulated parallel wires have excellent high temperature resistance, corrosion resistance, and mechanical properties, and are widely used in multiple fields, such as:
Advanced entertainment equipment
Computer
Measurement control device
Office equipment
Communication equipment
Industrial machinery
Electronic switch
Internal secondary circuit wiring of electronic devices.
UL/CUL model
2546 2869 20422 20423 20865 20887
