UL10584 ETFE Insulated Electric Cable | Single Core Hook Up Wire
UL File Number: E252458
Wire Gauge / Size: 30-10AWG
Conductor Material: Silver Plated Copper
Insulation Material: ETFE
Rating Temperature: -65°C To +150°C
Rating Voltage: 600V
Standard Packaging: 2000FT / 610M
Flame Retardancy: Passed UL VW-1 vertical combustion test
Qualification Certification: UL, CUL, VDE, RoHS, ISO9001, SGS

Our company supports customized services, providing conductor specifications (10AWG -30AWG), coatings (silver plated copper/nickel plated copper/tin plated copper), twisting methods (solid/multi-core twisting), wire color, length, packaging, and other customization options. It can also be customized according to the wires or drawings provided by the customer.
Send Inquiry

Product Introduction

Zhejiang IRONFLON Wire & Cable Co., Ltd. is one of the most professional manufacturers and suppliers of single core hook up wire in China, also supports customized service. Please feel free to buy high quality single core hook up wire for sale here from our factory. Also, free sample is available.



UL10584 ETFE insulation wire | single core hook up wire 600V 150°C

UL10584 ETFE insulation wire built for high-density electronic assembly, medical instrumentation, and high-frequency signal transmission. Extruded with ETFE (Ethylene Tetrafluoroethylene) over silver-plated solid or stranded copper, offering low dielectric loss, tight wall thickness tolerances, and high mechanical toughness in constrained routings.

UL10584 Single Core Hook Up Wire

Technical Specifications
Parameter Value / Requirement
Certified model UL10584
UL File Number E252458
Rating Temperature -65°C to +150°C
Rating Voltage 600V
Wire Gauge / Size 30-10AWG
Conductor Material

silver plated copper

Customizable Nickel Plated Copper And Tinned Copper.

Insulation Material

ETFE

Extruded, flame-retardant, high-density polymer

Flame Rating Passed UL VW-1 Vertical Combustion Test

Color Options: Standard Colors, Supporting Customization Of Special Colors



UL10584 ETFE insulation wire purple
UL10584 ETFE insulation wire white
UL10584 ETFE insulation wire grey
UL10584 ETFE insulation wire red
UL10584 ETFE insulation wire green
UL10584 ETFE insulation wire yellow
UL10584 ETFE insulation wire black
UL10584 ETFE insulation wire blue

UL10584 ETFE insulation wire Specification and Size Table

UL10584 ETFE Insulation Wire Specification And Size Table



Need Custom Or Free Samples For Testing?

Request A Quote / Free Sample

Key Physical & Electrical Characteristics of UL10584 ETFE Insulated Electric Cable



High-Frequency Attenuation Control: Silver-plated copper conductors minimize skin effect losses, maintaining low resistance at high operating frequencies compared to tinned copper alternatives.

Concentric Extrusion Precision: Extruded with continuous online laser micrometer tracking to enforce strict insulation concentricity. Prevents insulation pinholes, eliminates off-center conductors, and guarantees uniform force during automatic wire stripping.

Chemical & Solvent Resistance: Impervious to automotive fluids, aviation fuels, industrial solvents, strong acids, and bases. Retains flexural modulus and dielectric integrity after prolonged chemical exposure.

Abrasion & Cut-Through Toughness: ETFE provides higher tensile strength and cut-through resistance than PTFE, permitting thinner insulation walls without compromising mechanical protection in high-vibration environments.



Application scenarios of UL10584 ETFE Insulated Electric Cable

UL10584 ETFE Insulated Electric Cable Application Scenarios

Medical & Precision Instrumentation: Internal chassis wiring for endoscopes, diagnostic equipment, and patient monitor probes requiring lightweight, small-OD wire routings.

High-Density Electronics & Sensors: Board-to-board and board-to-sensor interconnections in miniature camera modules, industrial encoders, and optical instruments.

Industrial Controls & Robotics: Logic-level signal and low-voltage power distribution inside CNC control units, robotic arms, and heat-treatment monitoring systems.

Automotive & Aerospace Electronics: Internal wiring for test benches, harness assemblies, and onboard controllers exposed to ambient temperatures up to 150°C and chemical splashing.

About Us



Zhejiang IRONFLON Wire & Cable Co., Ltd. is a leading high-tech manufacturer specializing in the R&D, custom engineering, and global distribution of high-temperature fluoropolymer (PTFE, ETFE, FEP, PFA) wires and cables. With over 20+ years of industry expertise, we have established a large-scale vertically integrated production base aimed at providing unparalleled quality, exceptional durability, and responsive service to global customers.



UL10584 ETFE Insulated Electric Cable Workshop

Manufacturing Quality Control & Customization

Every lot of UL10584 ETFE insulation single core hook up wire is produced in accordance with ISO 9001 and IATF 16949 quality management systems.

  • In-Line Inspection: 100% spark testing during extrusion to detect insulation voids and continuous optical laser measurement for OD precision.
  • Batch Testing: High-voltage breakdown testing, conductor resistance verification, and thermal aging verification per UL standards.

Technical Support & Fast Sampling: Expert engineering consultation from selection to testing. Free stock samples and complete test reports available within 24–48 hours.



24/7 Technical Response & Global Logistics: Dedicated post-sale technical support with a 24-hour response guarantee. We collaborate with top international carriers to deliver seamless air, sea, and express door-to-door freight worldwide.

UL10584 Single Core Hook Up Wire Testing Room
Certificates

ETFE insulation wire certificate

We've got a lot of certificates. Awarded " WSF World Standard Certificate ".


Awarded " Growth oriented Technology Enterprise of YueQing ".



UL10584 ETFE insulation wire Honor Certificate

UL AND CUL Certification ( Reference E252458), VDE certification

QUALITY CERTIFICATION:ISO9001:2015 AND IATF16949

The product complies with RoHS and REACH standards

Insulated Electric Cable Certificate

Awarded " Science and Technology Innovation Enterprise Certificate of YueQing ".
Awarded " Certificate of sci-tech enterprises in Zhejiang Province ".

Awarded " Integrity Business Enterprise Certificate ".

Production Process

ETFE insulation wire production process

From raw material selection, precision twisting, insulation extrusion to size inspection, voltage withstand testing, and sampling inspection, Zhejiang IRONFLON implements standardized quality control processes throughout the entire process. Each batch of products passes multiple rigorous tests such as voltage withstand testing, dimensional accuracy testing, and conductivity testing to prevent the export of defective products.



Our company's advantages



Advantages of ETFE insulation wire



Packaging & Shipping

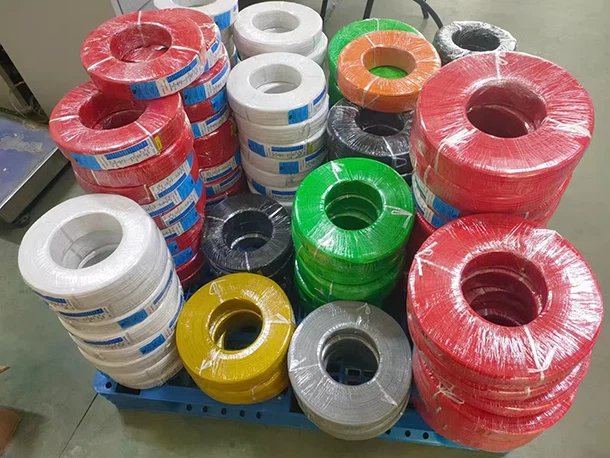

ETFE insulation wire packaging
Insulated electric cable packaging
UL10584 Single Core Hook Up Wire packaging
UL10584 ETFE insulation wire packaging

On product packaging, we usually use biodegradable plastic film packaging. It can protect wires from damage and clutter. Degradable plastic materials can also reduce environmental pollution.

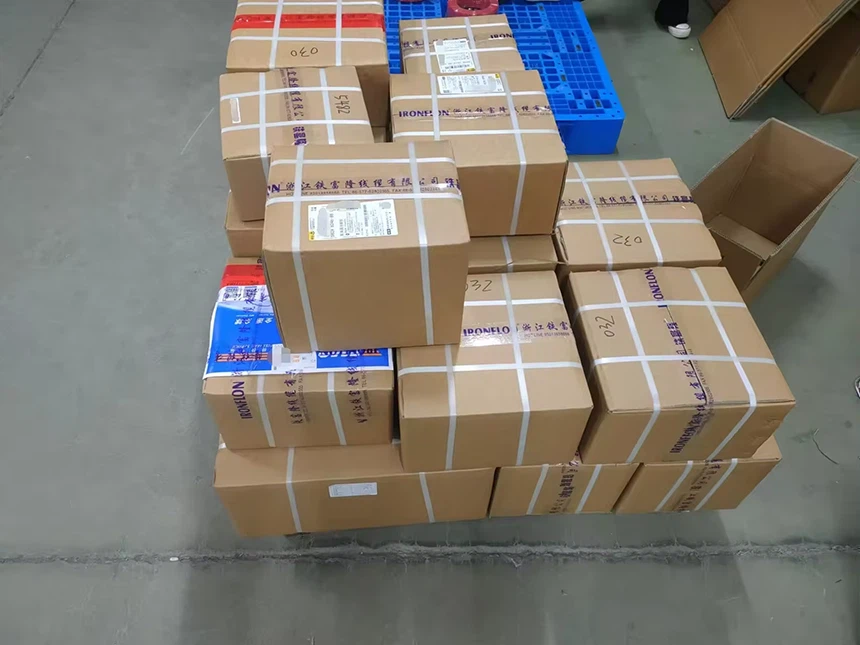

After being wrapped in plastic film, it can be packaged in cardboard boxes according to a certain quantity, or according to customer requirements.

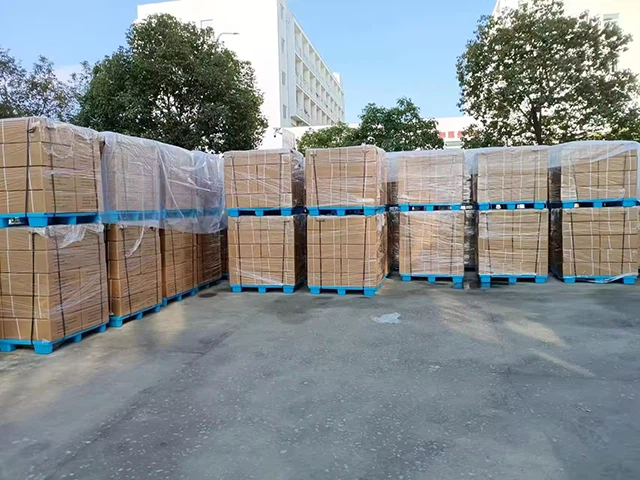

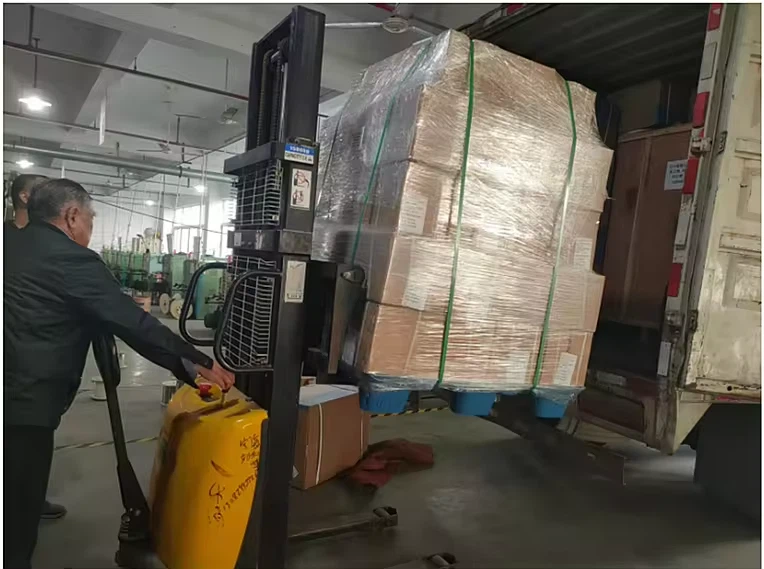

After packing, when placed on the pallet, we will arrange a suitable time to transport the pallet to the vehicle.



After the pallet is transported to the vehicle, it will be uniformly transported to the corresponding station. We will choose different transportation methods according to the customer's needs. Such as sea freight, air freight, express delivery, etc.

FAQ

Q: Can I get free samples for quality testing?

A: Yes, stock samples are free of charge. Customers only cover the international express/freight cost.



Q: Do you offer volume discounts?

A: Yes, we offer tiered pricing based on order volume. Contact our sales team with your target quantity for a competitive quote.



Q: Do you support OEM/ODM customized manufacturing?

A: Absolutely. We offer custom wire gauges, conductor materials, color-coding, and tailored packaging to fit your brand needs.



Q: What is your Minimum Order Quantity (MOQ)?

A: For items in stock, there is no MOQ requirement. For custom conductor sizes or colors, the MOQ depends on technical specifications and can be negotiated.
