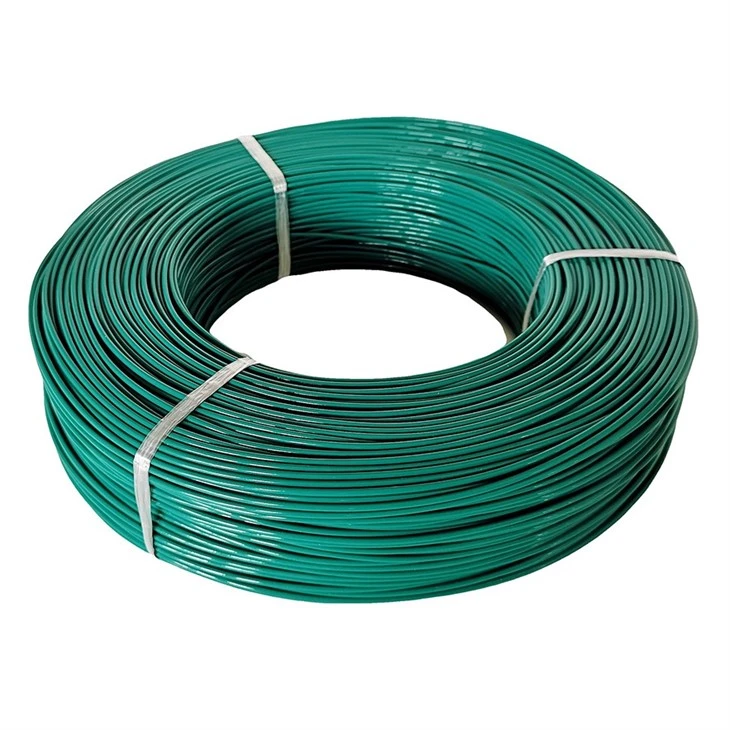

UL1330 High-Temperature Electrical Power Wire / FEP Insulated Wire (600V, 200°C)
UL File Number: E252458
Wire Gauge / Size: 18AWG
OD: 2.25mm
Conductor Structure: 19/0.235
Conductor Material: Nickel Plated Copper
Insulation Material: FEP
Rating Temperature: 200°C
Rating Voltage: 600V
Standard Packaging: 1000FT / 305M
Flame Retardancy: Passed VW-1 And FT1 vertical combustion tests
Qualification Certification: UL, CUL, VDE, RoHS, ISO9001, IATF16949, SGS
Customization Capability: Support customization of wire specifications, conductor materials, insulation materials, colors, lengths, packaging, etc.
Send Inquiry

Product Introduction

Zhejiang IRONFLON Wire & Cable Co., Ltd. is one of the most professional manufacturers and suppliers of electrical power wire in China, also supports customized service. Please feel free to buy high quality electrical power wire for sale here from our factory. Also, free sample is available.



UL1330 High-Temperature electrical power wire / FEP Insulated Wire (600V, 200°C)


UL1330 high-temperature electrical power wire is insulated with premium Fluorinated Ethylene Propylene (FEP), providing exceptional thermal stability across an operating temperature range of -80°C to +200°C (short-term peak resistance up to 250°C). Rated at 600V, this hook-up wire delivers outstanding chemical resistance, dielectric strength, and mechanical toughness (abrasion & cut-through resistance). Certified by UL (E252458), CUL, and VDE, it strictly complies with RoHS standards.



Core Advantages & Characteristics

  • Extreme Chemical & Corrosion Resistance: 100% inert to strong acids, alkalis, aggressive solvents, and moisture - ideal for severe chemical and industrial environments.
  • Superior Flame Retardancy: Self-extinguishing fluoropolymer insulation (VW-1 / FT1 rated) that will not sustain combustion, melt into toxic drips, or produce dense smoke.
  • High Dielectric Strength: Stable electrical performance under high-voltage and high-frequency conditions.
  • Customization Services: OEM/ODM supported for stranding, color coding, spooling lengths, and pre-cut stripping.
UL1330 High-Temperature Electrical Power Wire
Product Parameters



Parameter Value / Requirement
Certified model UL1330
UL File Number E252458
Rating Temperature 200°C
Rating Voltage 600V
Wire Gauge / Size

18AWG (OD 2.25mm)

Support customization of 30-40/0AWG standard specifications

Conductor Material

19/0.235 Nickel Plated Copper

Customizable silver plated copper and tinned copper.

Insulation Material

Extruded FEP (Fluorinated Ethylene Propylene)

Tensile strength ≥ 17.2 MPa, Elongation ≥ 200%

Flame Rating Passed UL VW-1 Vertical Combustion Test
Certifications & Compliance UL, CUL, VDE, RoHS, ISO9001, IATF16949, SGS



Color Options: Standard colors, supporting customization of special colors
UL1330 FEP Insulated Wire purple
UL1330 FEP Insulated Wire white
UL1330 FEP Insulated Wire grey
UL1330 FEP Insulated Wire red
UL1330 FEP Insulated Wire green
UL1330 FEP Insulated Wire yellow
UL1330 FEP Insulated Wire black
UL1330 FEP Insulated Wire blue
Dimensions & Specification Table



Dimensions & Specification Table



Support customization of wire specifications, conductor materials, colors, lengths, etc., can be customized according to customer requirements.

Request A Quote / Free Sample



Application Scenarios
UL1330 High Capability Electrical Power Wire Application
UL1330 Electrical Power Wire Application
UL1330 FEP Insulated Wire Application
UL1330 Wire Application

Industrial Heating Elements: Lead wires for commercial ovens, band heaters, and thermal processing equipment.

Chemical & Oil Refineries: Signal and power wiring in environments exposed to corrosive gases, solvents, and fuels.

Automotive & Transportation: Sensor wiring in engine bays, exhaust systems, and high-temperature valve actuators.

Medical & Laboratory Devices: Internal interconnects requiring sterilization resistance and chemical wiping.

Why Choose us?
UL1330 High Capability Electrical Power Wire Factory
UL1330 Electrical Power Wire Warehouse

IATF 16949 & ISO 9001 Certified: Precision manufacturing ensuring automotive-grade and aerospace-grade reliability.

8 independent specialized production lines: Covering copper wire drawing, conductor stranding, outer shielding weaving, insulation/sheath extrusion, and film wrapping/sintering. The monthly production capacity can reach 7500 kilometers.

Strict Quality Control: Full raw material traceability and 100% spark testing during extrusion.

Comprehensive Product Portfolio

  • Fluororesin Wires & Cables: PTFE, FEP, ETFE, XLETFE, PVDF, PFA, MFA.
  • Rubber Cables: EPDM, FPM (Fluoro-rubber), Silicone Rubber.
  • High-Performance Film-Wrapped Cables: PTFE, Polyester film wrapping.
  • Specialized & EV Cables: XLPE high-temperature wire, Foamed F-FEP/F-PE coaxial cables, Nylon jacketed wires, Power cables, and EV automotive wire harnesses.
UL1330 FEP Insulated Wire Workshop
UL1330 Wire Workshop
Certifications & Quality Assurance
UL1330 High-Temperature Electrical Power Wire Certificates
UL1330 Electrical Power Wire Certificate

UL / CUL Certified: Reference File E252458

VDE Certified

Quality Management: ISO 9001:2015 & IATF 16949 (Automotive Grade)

Environmental Compliance: RoHS & REACH Compliant



Manufacturing & Quality Control

UL1330 Electrical Power Wire Production Process



Conductor Processing & Extrusion

Conductor stranding is maintained within strict pitch tolerances to ensure consistent outer diameter and mechanical flexibility during automated wire stripping and crimping. The FEP insulation is processed via precision high-temperature melt-extrusion, achieving uniform wall thickness and concentricity >85%. This prevents insulation thin-spots and protects against voltage punch-through.



In-Line & Factory Inspection

Every production lot undergoes 100% in-line spark testing (up to 6kV depending on conductor size) to detect micro-pinholes before spooling. Batch quality testing includes:

  • Conductor Resistance
  • Insulation Thickness & Concentricity
  • Thermal Aging Test
  • Vertical Flame Testing



Exhibition



UL1330 Electrical Power Wire team

UL1330 Electrical Power Wire Exhibition

Our company actively participates in offline activities, such as exhibitions in various regions, focusing on cable technology and solutions in areas such as 5G base station construction, new energy vehicles, and big data centers, covering the entire industry chain of cable production equipment, materials, and testing instruments. Our technical backbone communicates with other personnel, such as product promotion, technical exchange, industry trend analysis, etc., to take our company to the next level.


We have participated in the Hong Kong Global Source Electronics Show for five consecutive years and also attended the China Chamber of Commerce. Won second place in the Quality Knowledge Competition of Yueqing Wires and Cables Industry Association.



Packaging & Shipping
UL1330 High Resistance Electrical Power Wire Packaging
UL1330 Electrical Power Wire Packaging

Standard Packaging: Moisture resistant plastic film inner packaging, standard export reels/rolls, and cardboard boxes.

Custom Packaging: Custom spooling sizes, barcode labeling, and outer master carton design upon request.

Logistics Support: Express, Air Freight, and Sea Freight.



FAQ



Q: Are you a direct wire and cable manufacturer?

A: Yes, Zhejiang IRONFLON Wire & Cable Co., Ltd. is a specialized manufacturer of high-temperature fluoroplastic insulated wires with complete control over raw materials, extrusion processing, testing, and packaging.



Q: What is the difference between UL1330 (FEP) and PTFE wire?

A: While both are high-temperature fluoropolymers, UL1330 FEP offers superior flexibility, excellent moisture resistance, and continuous long-length extrusion (up to 200°C), whereas PTFE supports slightly higher temperatures (up to 260°C) but is stiffer.



Q: Can I get free samples for quality testing?

A: Yes, stock samples are free of charge. Customers only cover the international express/freight cost.



Q: What is your Minimum Order Quantity (MOQ) and lead time?

A: For stock items, there is no MOQ. For customized products, the minimum order quantity varies depending on the wire gauge and conductor type. The production delivery cycle is generally 7-15 working days.



Q: What is VW-1 flame rating and why is it critical for high-temp wires?

A: VW-1 is a strict UL flame-retardant rating (Vertical Wire Flame Test) indicating that the wire automatically self-extinguishes within a short time when exposed to an open flame and will not spread fire via dripping ignited particles. For high-temperature wires like UL1330, a VW-1 rating is critical as it guarantees operational safety and electrical fire prevention in severe, high-heat, or enclosed equipment environments.
