Zhejiang IRONFLON Wire & Cable Co., Ltd. is one of the most professional manufacturers and suppliers of ul1213 wire in China, also supports customized service. Please feel free to buy high quality ul1213 wire for sale here from our factory. Also, free sample is available.
UL1213 PTFE cable | Nickel-Plated Wire | High-temperature Hook-Up Wire

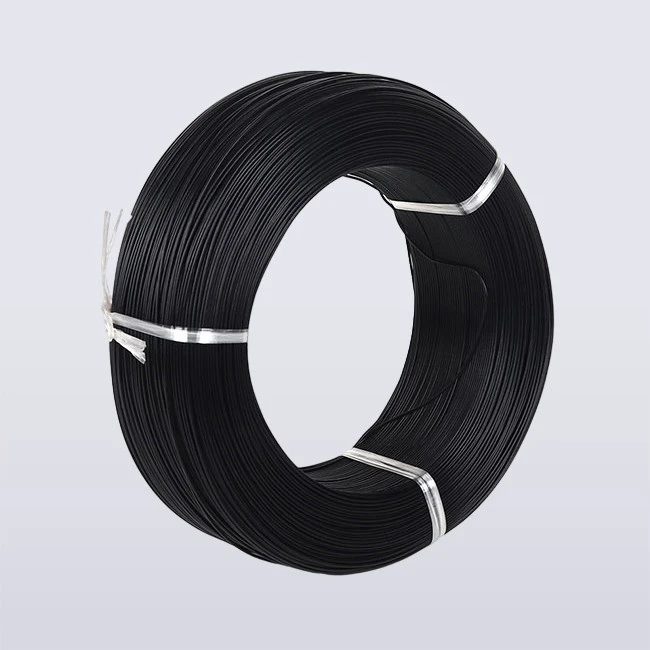

UL1213 PTFE Insulated Nickel-Plated Wire features nickel-plated copper conductors designed for elevated-temperature applications up to 200°C. The nickel coating provides oxidation and corrosion protection in aggressive environments where standard tin-plated copper degrades. Standard strandings range from 36AWG through 16AWG, available in both solid and high-flex concentric stranded constructions.
PTFE cable using thin-walled extruded polytetrafluoroethylene (PTFE) insulation maintain high dielectric strength, low dielectric constant, and chemical inertness throughout the entire operating temperature range (-65°C to+200°C). The thin-walled insulation design minimizes the overall diameter and weight of the cable, while also possessing acid, alkali, solvent, and fuel resistance characteristics.
Technical Specifications
| Parameter | Value / Requirement |
| Certified model | UL1213 |
| UL File Number | E252458 |
| Rating Temperature | -65°C to +200°C |
| Rating voltage | 300V |
| Wire Gauge / Size | 36-16AWG |
| Insulation Material | PTFE |
| Flame Rating | Passed UL VW-1 Vertical Combustion Test |
| Certifications & Compliance | UL, CUL, VDE, RoHS, ISO9001, IATF16949, SGS |
Electric and Physics capability
| Parameter | Value / Requirement | Test Method / Standard |
| Dielectric Spark Test | 3 kV AC / 0.15s | Inline Production Test |
| Finished Product Voltage Test | 2 kV / 1 min (Tap water immersion, RT) | Pass |
| Unaged Tensile Strength | ≥ 27.6 MPa | Test speed: 500±25 mm/min |
| Unaged Elongation | ≥ 175% | Test speed: 500±25 mm/min |
| Aged Tensile & Elongation | ≥ 85% retention after 60 days @ 260°C | Air circulating oven |
| Environmental Compliance | RoHS | Pass |
UL1213 wire Dimensions & Specification Table
Customized manufacturing and OEM capabilities
We provide customized production solutions to meet specific requirements for wire harness design, electrical layout, and mechanical packaging.
- Conductor materials: Nickel plated copper, silver plated copper, or tin plated copper.
- Twisting configuration: The number and length of twisted strands can be customized according to specific flexibility or bending life.
- AWG specifications: Available in conductor sizes ranging from 36AWG to 16AWG.

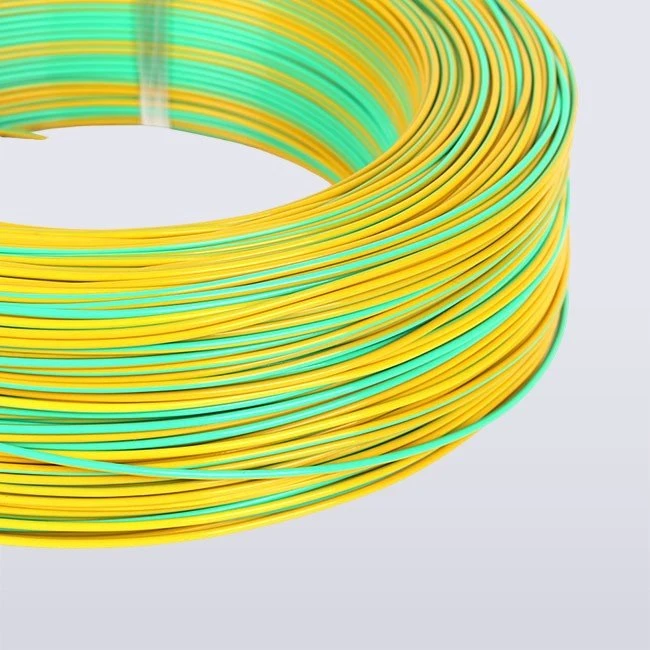

- Color options: Standard colors (black, brown, red, orange, yellow, green, blue, purple, gray, white, etc.), support for special color customization.
- Insulation wall thickness: thin wall or customized dielectric thickness options, suitable for space limited enclosures or higher dielectric breakdown thresholds.
- Wire harness and twisted pair: multi-core twisted wire, customized sheath and shielding layer, used for electromagnetic interference protection.
- length: Customizable spool sizes (such as 100 meters, 305 meters/1000 feet, or large continuous bulk reels), compatible with high-speed automated wire processing equipment.
- Customized labels and traceability: Each spool is labeled with complete wire information, ensuring traceability to support ISO and IATF quality system audits.
Request A Fast Quote & Free Sample
Application Scenarios
UL 1213 PTFE wire is specified for high-density, high-temperature internal wiring where space limitations and environmental exposure exclude conventional PVC or XLPE insulation:
- Industrial Thermal Controls: Internal lead wiring for industrial ovens, commercial heating elements, and process sensors.
- Aerospace & Defense Equipment: Avionics chassis wiring, test bench equipment, and harness assemblies requiring light weight and chemical immunity.
- Medical Devices: Internal electrical interconnects for sterilizable instruments and high-frequency surgical generators.
- Electronic Instrumentation: Internal power and signal distribution lines exposed to soldering heat or high-density wiring bays.
Company Profile
IRONFLON Wire&Cable Co., Ltd. was born in response to the needs of the new economic development. The company is committed to the research and development of high-temperature cables, establishing a sound quality management system, and fully meeting the needs of customers.
At present, the company has passed ISO9001 and IATF16949 quality management system certifications, and most of its products have passed UL and CUL certifications in the United States and VDE safety and quality certifications in Germany.
We have a team with a broad vision, innovative spirit, and strong service awareness. They possess professional theories, techniques, skills, as well as innovative consciousness, abilities, and professional ethics. They focus on, constantly innovate, and deeply cultivate the market, providing professional and personalized services to hundreds of enterprises in different industries. IRONFLON's business model is very flexible, with comprehensive after-sales service, and is highly trusted by globally renowned customers.

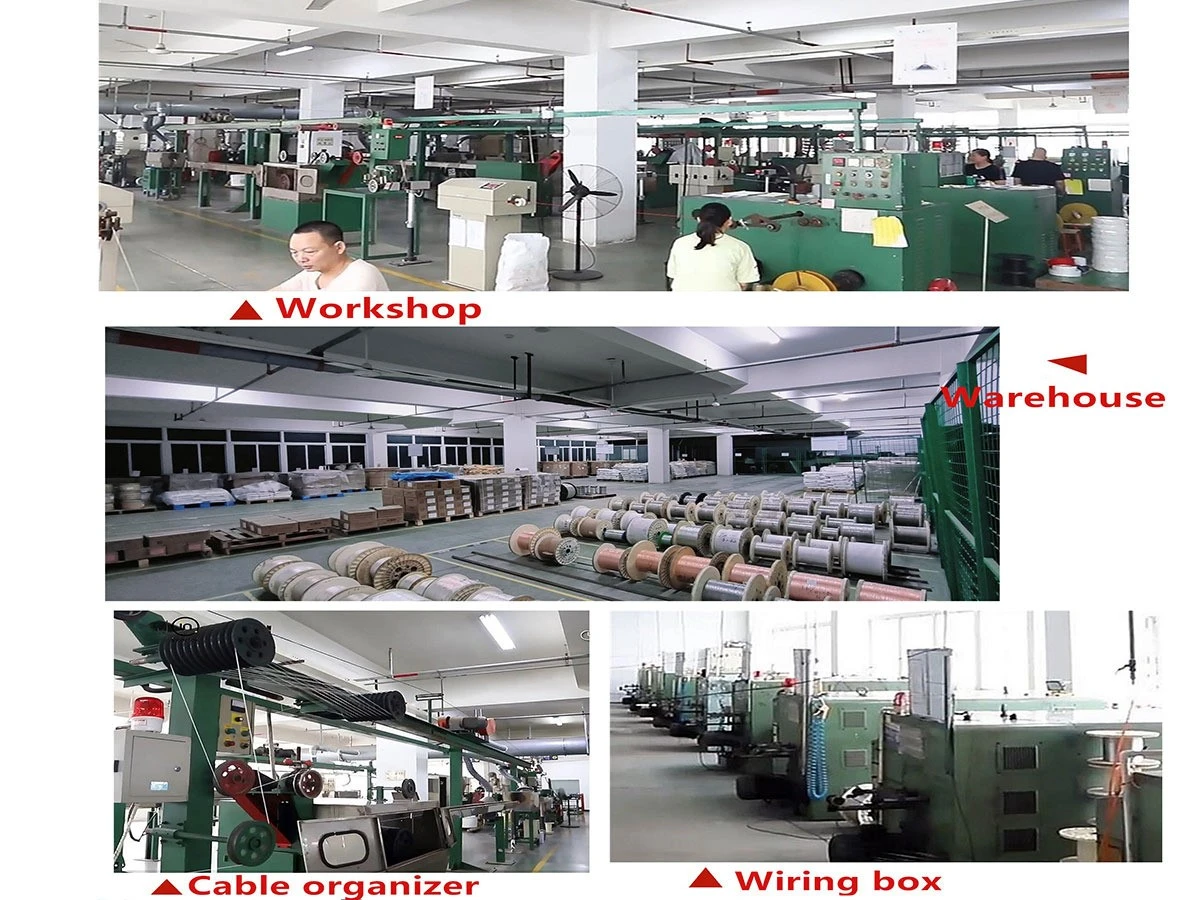

production workshop
Production process
Each production batch undergoes continuous size monitoring and dielectric verification:
- Concentricity Control: Extrusion tooling is monitored to maintain high insulation concentricity, ensuring consistent wall thickness and preventing die-cutting during automated wire stripping.
- In-Line Spark Testing: 100% of finished wire passes through in-line high-voltage spark testing prior to spooling to verify insulation continuity.
- Solderability & Thermal Aging: Nickel plating provides corrosion resistance and thermal stability, preventing copper conductor oxidation during prolonged exposure to temperatures near 200°C.
Exhibition
Our company actively participates in offline activities and has attended exhibitions in various regions. At these events, our technical backbone communicates with other personnel, such as product promotion, technical exchanges, industry trend analysis, etc., which takes our company to the next level.
We have participated in the Hong Kong Global Source Electronics Show for five consecutive years and also attended the China Chamber of Commerce. Won second place in the Quality Knowledge Competition of Yueqing Wire and Cable Industry Association.
Certificates
CERTIFICATIONS IN INTERNATIONAL AND DOMESTIC
UL AND CUL Certification ( Reference E252458), VDE certification
QUALITY CERTIFICATION:ISO9001:2015 AND IATF16949
The product complies with RoHS and REACH standards
FAQ
Q: What is the main benefit of choosing a nickel-plated conductor over silver-plated or tin-plated copper for UL1213 wire?
A: Nickel-plated copper provides superior resistance to thermal oxidation and chemical corrosion at elevated temperatures. Unlike silver-plating, which can suffer from the "red plague" phenomenon in humid environments, or tin-plating, which melts at higher temperatures, nickel maintains high structural and electrical integrity in harsh industrial and aerospace environments.
Q: What is your Minimum Order Quantity (MOQ) and lead time?
A: For stock items, there is no MOQ. For customized products, the minimum order quantity varies depending on the wire gauge and conductor type. The production delivery cycle is generally 7-15 working days.
Q: How does the thin-wall PTFE insulation benefit high-density electronic assemblies?
A: UL1213 features an ultra-thin insulation wall (typically about 0.006 inches/0.15mm). This drastically reduces the overall outer diameter (OD) and cable weight, allowing maximum space savings and flexible routing inside compact enclosures, high-density connectors, and delicate instruments.
Q: Are you a direct wire and cable manufacturer?
A: Yes, Zhejiang IRONFLON Wire & Cable Co., Ltd. is a specialized manufacturer of high-temperature fluoroplastic insulated wires with complete control over raw materials, extrusion processing, testing, and packaging.
Q: Do you offer custom color and sizing options?
A: Yes, we support custom AWG sizes (36–16AWG), multi-color insulation, and custom cutting/stripping options according to your drawings.
