UL10126 High Temperature hook-up wire | ETFE Insulated Copper Wire | 150°C 600V Wire

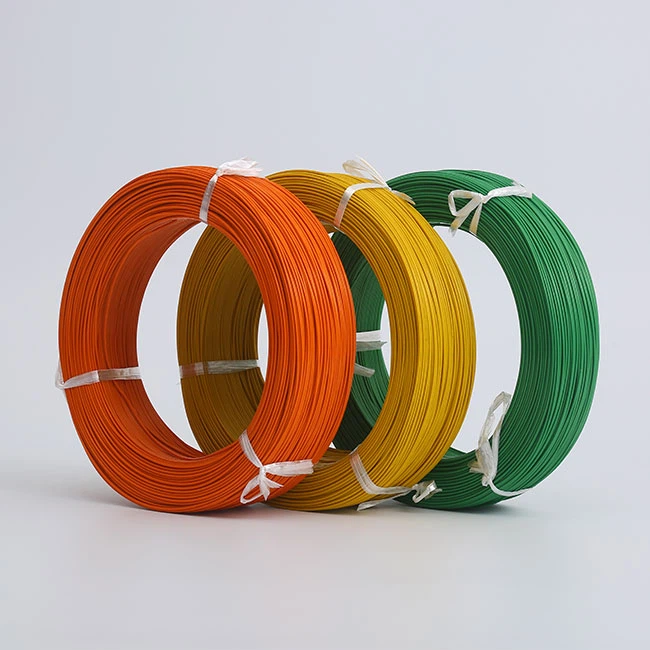

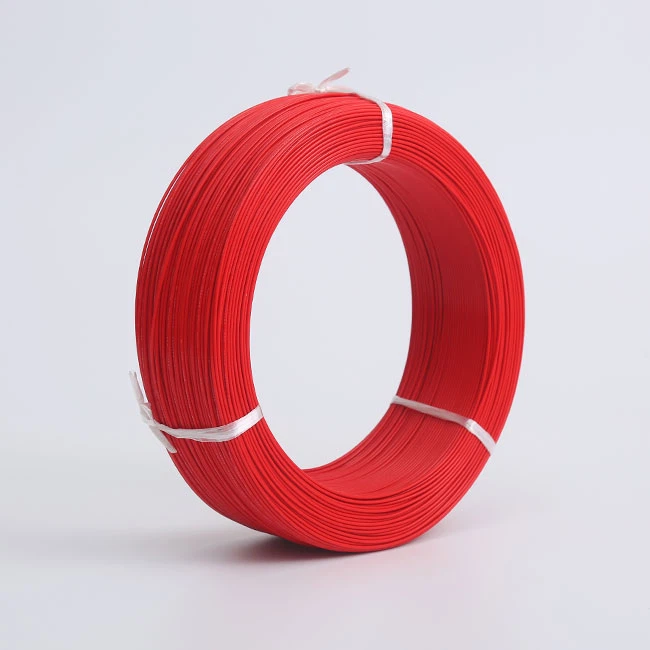

UL10126 high temperature hook-up wire is engineered with premium fluoroplastic (ETFE) insulation and stranded tin plated copper conductors, designed for harsh and elevated temperature environments up to 150°C. This cable has passed UL certification, complies with RoHS environmental standards, and has passed UL VW-1 vertical flame testing, ensuring excellent flame retardancy, electrical safety, and long-term durability.

Technology Parameter
| Parameter | Value / Requirement |
| Certified model | UL10126 |
| UL File Number | E252458 |
| Rating Temperature | 150°C |
| Rating Voltage | 600V |
| Wire Gauge | 22AWG (OD: 1.37±0.10mm) |
| Conductor Structure | 19/0.15mm Multi strand twisting |
| Conductor Material | tin plated copper |
| Insulation Material | Extruded ETFE (Ethylene Tetrafluoroethylene) |
| Insulation Avg. thickness | 0.3mm |
| Insulation Min thickness | 0.254mm |
| Conductor resistance |
≤59.4Ω/km (Testing Condition: 20℃) |
| Flame Rating | Passed UL VW-1 Vertical Combustion Test |
UL10126 wire Material Construction Details

Tinned Copper Conductor (19/0.15mm)
The conductor consists of 19 strands of 0.15 mm tinned copper wire, yielding a combined nominal conductor cross-section optimized for flexibility and fatigue resistance in tight-bend wiring paths. Tin plating prevents copper oxidation under elevated continuous thermal exposure up to 150°C and maintains solderability at termination points. Maximum electrical resistance is strictly controlled under 59.4ohm/km at 20°C.
Extruded ETFE Insulation
The insulation layer utilizes extruded ETFE with a nominal wall thickness of 0.30 mm and a minimum point thickness of 0.254 mm, maintaining an overall outer diameter of 1.37±0.10mm. ETFE provides balanced mechanical toughness, chemical resistance to solvents and lubricants, and dielectric strength within a reduced insulation wall profile compared to standard PVC or XLPE wiring.
Our company supports customized services, providing conductor specifications (10AWG -30AWG), coatings (silver plated copper/nickel plated copper/tin plated copper), twisting methods (solid/multi-core twisting), wire color, length, packaging, and other customization options. It can also be customized according to the wires or drawings provided by the customer.
Need Custom Or Free Samples For Testing?
Electric and Physics capability
| Finish product voltage test | Tap water room temperature for 1H | 2kV/min | PASS | ||
| Spark test | V/0.15s | 6kV/AC | PASS | ||
| Insulation | Unaged | Elongation | to be tested at a speed of 50±5 mm/min | ≥100% | PASS |
| Tensile Strength | ≥34.5MPa | PASS | |||
| Aged | Elongation | Aged in a full-draft circulating-air oven for 180±1.0℃ 168h | ≥75% | PASS | |
| Tensile Strength | ≥85% | PASS | |||
| Flame Test | Insulation | VW-1 | PASS | ||
| ROHS Test | EU-Directive 2002/95/EC(ROHS) | PASS | |||
Quality Assurance & Factory Testing Protocols
In-Line Spark Testing: 100% of production footage passes a continuous 6kV/AC spark test during extrusion to detect pinholes or wall discontinuities.
Dielectric Withstand Testing: Samples undergo immersion in room-temperature tap water for 1 hour followed by a 2kV dielectric voltage test for 60 seconds without insulation breakdown.
Thermal Aging & Mechanical Verification: Insulation samples are aged in a full-draft circulating-air oven at 180℃ for 168 hours. Post-aging mechanical testing requires maintaining ≥85% tensile strength and ≥75% elongation retention relative to unaged baselines (≥34.5MPa tensile strength, ≥100% elongation).
Flammability Compliance: Rated UL VW-1 vertical flame resistant, preventing flame propagation and self-extinguishing within prescribed standard limits upon flame source removal.
Application Scenarios
UL10126 ETFE insulated copper wire is specified for internal wiring of electrical equipment, industrial instrumentation, and electronic controls operating under combined thermal and space constraints:
- Internal Wiring of Appliances & Machinery: Industrial heaters, sensors, power supplies, and control cabinets operating between -65°C and +150°C.
- Aerospace & Medical Instrumentation: Harnesses requiring high mechanical cut-through resistance and low outgassing properties within compact enclosures.
- Chemical & Automotive Processing Equipment: Wiring routes exposed to oils, gasoline, acids, and aggressive liquid chemicals where standard hook-up wire degrades.

Why choose Zhejiang IRONFLON?




Certified Quality Assurance: Manufactured under ISO9001:2015 and IATF16949 quality management systems. The product has passed UL and RoHS certification.
Advanced Manufacturing & Patents: Our product quality has reached the international advanced level. We have advanced production technology, 22 patented technologies, multiple qualification certifications (UL, CUL, VDE, RoHS, ISO9001, IATF16949, SGS), and 3 software copyrights and multiple internationally registered trademarks (such as "IRONFLON").
OEM/ODM Customization: Full-process solutions tailored to your conductor size, insulation thickness, and color requirements.

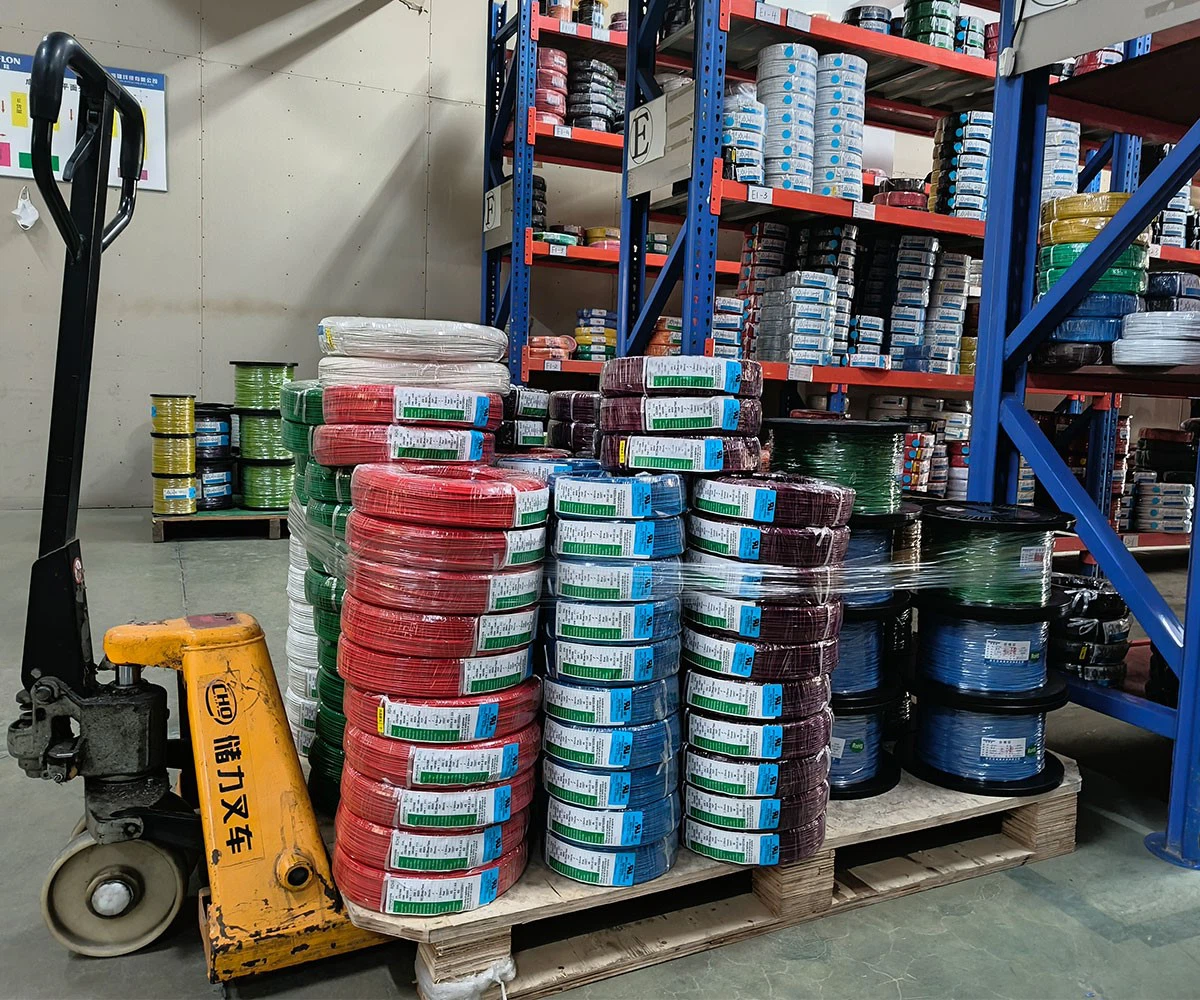

Fast Delivery: In-stock items ship within 1–3 days. Custom production orders ship in 10–15 days.

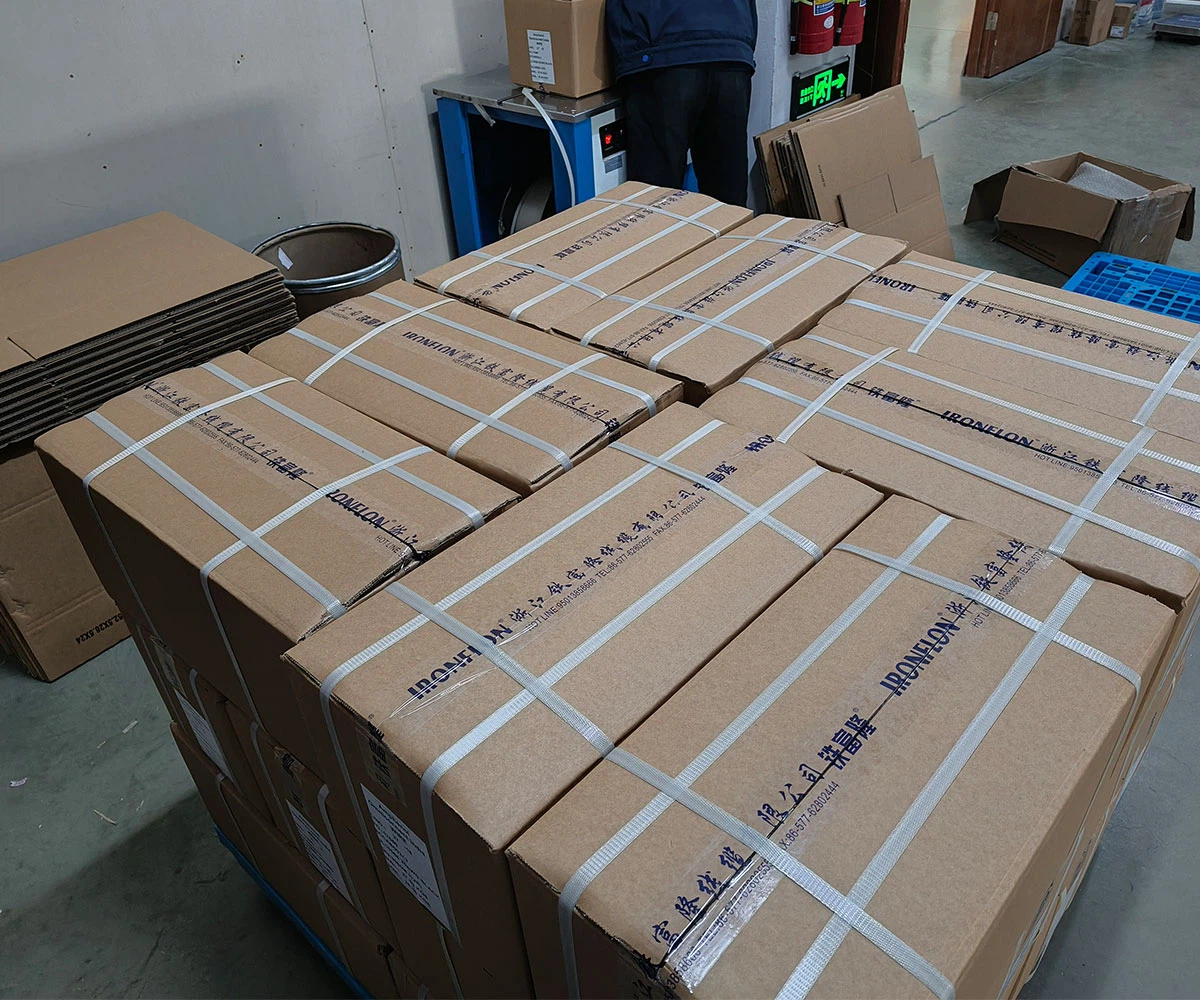

Packaging advantages: The product adopts customized waterproof and moisture-proof packaging, with an inner layer of biodegradable plastic film and an outer layer of high-strength cardboard box. Each roll of cable is individually packaged and labeled with specifications and batch information to avoid wear and moisture during transportation.




Transportation Advantages: We have established long-term partnerships with several well-known logistics companies, providing diversified transportation solutions such as road, rail, and sea freight. Short distance orders are delivered within 24-48 hours, while long-distance orders are tracked throughout the entire process to ensure safe and timely delivery of goods. We also provide customs clearance assistance services for cross-border orders.
Our Precision Manufacturing Process

From raw material selection, precision twisting, insulation extrusion to size inspection, voltage withstand testing, and sampling inspection, Zhejiang IRONFLON implements standardized quality control processes throughout the entire process. Each batch of products passes multiple rigorous tests such as voltage withstand testing, dimensional accuracy testing, and conductivity testing to prevent the export of defective products.
Customer feedback


FAQ
Q: Which Certificate Do You Have?
A: Through ISO9001 and IATF16949 quality management system certification, most products have passed UL and CUL certification in the United States, and VDE safety and quality certification in Germany.
Q: Do you support OEM/ODM customized manufacturing?
A: Absolutely. We offer custom wire gauges, conductor materials, color-coding, and tailored packaging to fit your brand needs.
Q: What is your Minimum Order Quantity (MOQ)?
A: For items in stock, there is no MOQ requirement. For custom conductor sizes or colors, the MOQ depends on technical specifications and can be negotiated.
Q: Can I get free samples for quality testing?
A: Yes, stock samples are free of charge. Customers only cover the international express/freight cost.
Q: Do you offer volume discounts?
A: Yes, we offer tiered pricing based on order volume. Contact our sales team with your target quantity for a competitive quote.
Q: How to Choose the Right High-Temperature Wire for Your Application?
A: According to the requirements of working temperature, rated voltage, chemical resistance, etc., match suitable conductors (tin plated/silver plated/nickel plated copper) and insulation materials (such as PTFE, ETFE, silicone), and ensure compliance with safety certifications of the target industry (such as UL, RoHS).
