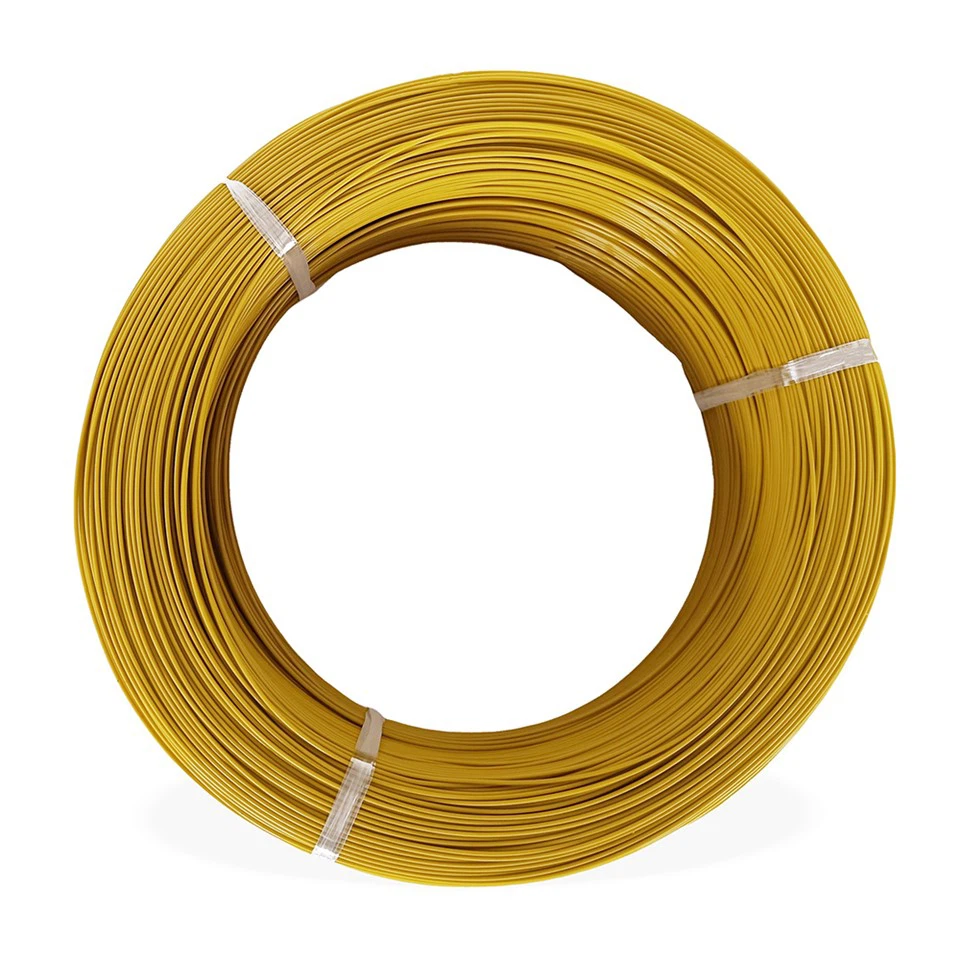

High Temperature Resistance Wire

Zhejiang IRONFLON Wire & Cable Co., Ltd. is one of the most professional manufacturers and suppliers of high temperature resistance wire in China, also supports customized service. Please feel free to buy high quality high temperature resistance wire for sale here from our factory. Also, free sample is available.



Conductor structure: 7 stranded conductors of 0.12mm diameter tinned copper wire or a single 0.32mm conductor to ensure conductive stability and corrosion resistance.

Temperature resistance range: -80℃ to +200℃, suitable for high temperature environment.

Rated Voltage: 300V, passes UL VW-1 vertical flammability test.

Certifications and Standards: UL758 compliant with UL certified wire.

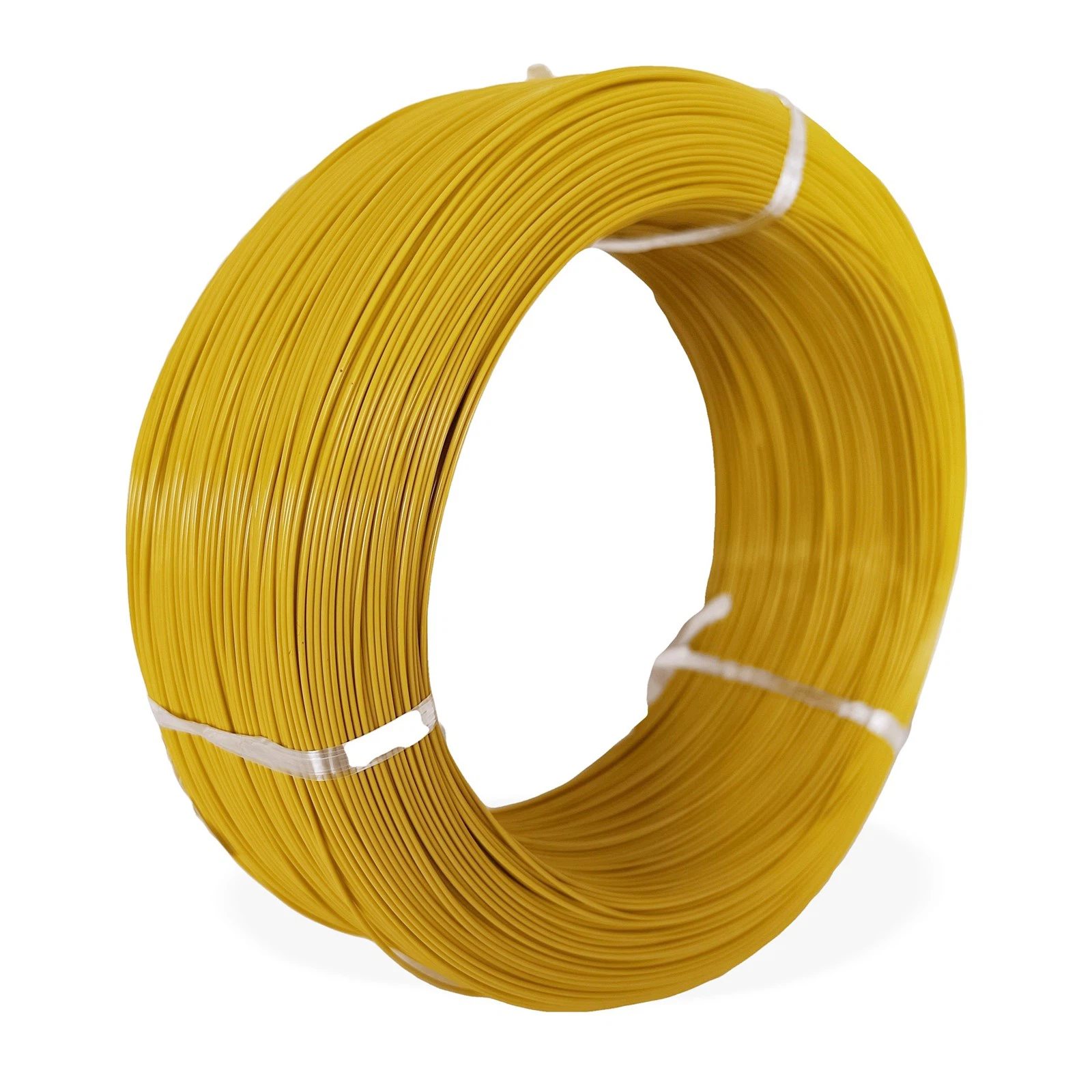

Application Scenarios for UL1332 High Temperature Resistance Wire





I. Core Application Areas
High-temperature area wiring for household appliances
Microwave oven magnetron connecting wires, electric oven heating element leads, and air fryer internal wiring, resistant to 200°C long-term operating temperature.
Rice cooker / electric kettle heating plate wiring, need to resist steam corrosion and frequent thermal cycling.

Industrial electronic equipment
Signal transmission lines for industrial sensors (e.g. temperature probes), resistant to oil and chemical solvent erosion.
Motor lead wires, inverter internal wiring, to take advantage of its high-frequency loss of small characteristics.



Lighting Equipment
Wires for high-temperature areas of LED luminaires (e.g., around the driver power supply), meeting the need for flame retardancy (UL VW-1) and aging resistance.
Stage lighting equipment internal wiring harness, resistant to spotlight long-term high-temperature radiation.

2. special scenarios adaptability
chemical corrosion environment: laboratory equipment connection line, resistance to strong acids and alkalis (such as pH tester wiring).
Space-constrained scenarios: 28AWG fine wire diameter for printer printheads, scanners, precision parts wiring.
Mobile equipment: robot joints flexible wire harness, FEP insulation layer to resist bending fatigue.



Product Date

1. Core Performance Advantages
Outstanding chemical resistance
Resistant to strong acids, alkalis, oxidizers and organic solvents, suitable for chemical equipment, laboratory instruments and other corrosive environments, to ensure that the wire is not degraded in oil, steam or chemical media.
Outstanding waterproof and oilproof characteristics, effectively preventing moisture or grease penetration, prolonging the service life in wet or oily scenes (such as kitchen appliances, industrial sensors).

Excellent electrical insulation properties
Low high-frequency loss, high insulation resistance, supports 300V rated voltage, reduces signal interference and energy loss in high-frequency or high-voltage applications (e.g., inverters, LED drivers).
Non-moisture-absorbing, high-voltage resistant design to safeguard electrical safety and avoid the risk of short-circuit or leakage.

2. Material and Construction Advantages

Insulation Characteristics
FEP Teflon insulation provides a low coefficient of friction and non-adhesion, reducing installation resistance and enhancing abrasion resistance (e.g., robotic joint wiring harnesses), suitable for space-constrained precision equipment.
High flame retardant rating, passes UL VW-1 vertical flammability test, reduces fire risk and ensures safe use in scenarios such as lamps and appliances.

Conductor and Physical Structure

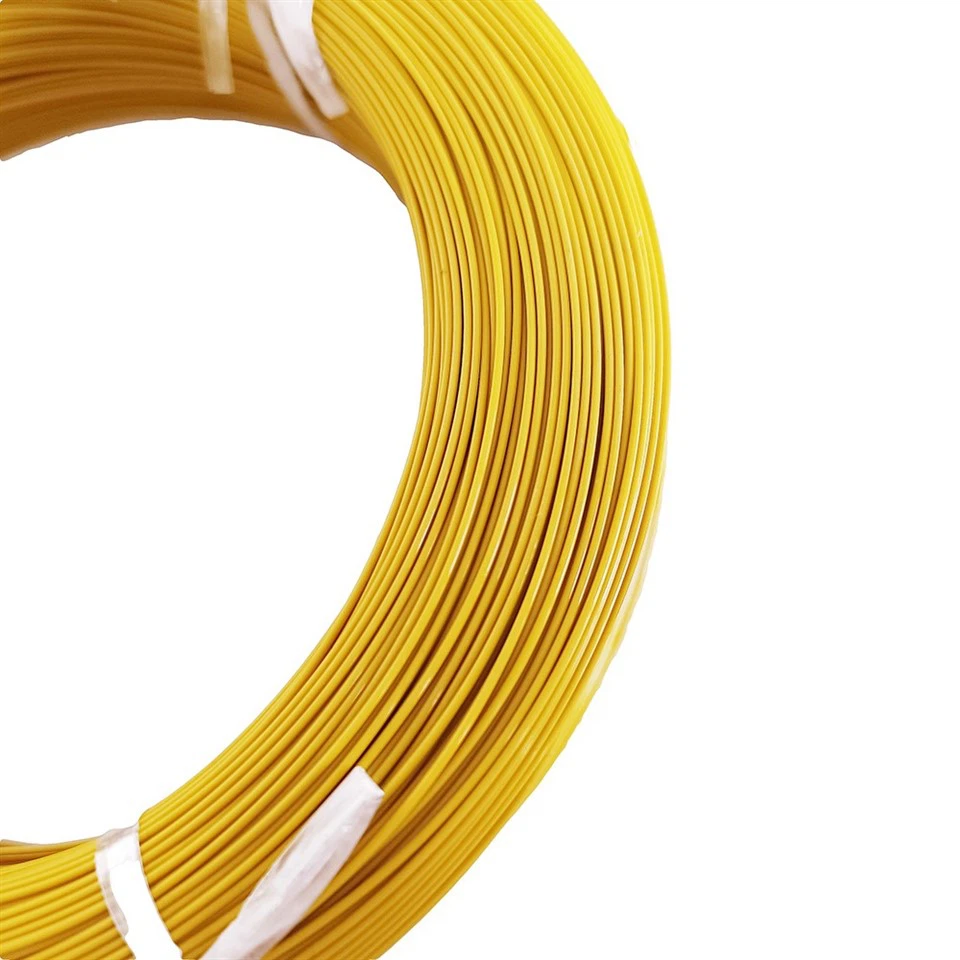

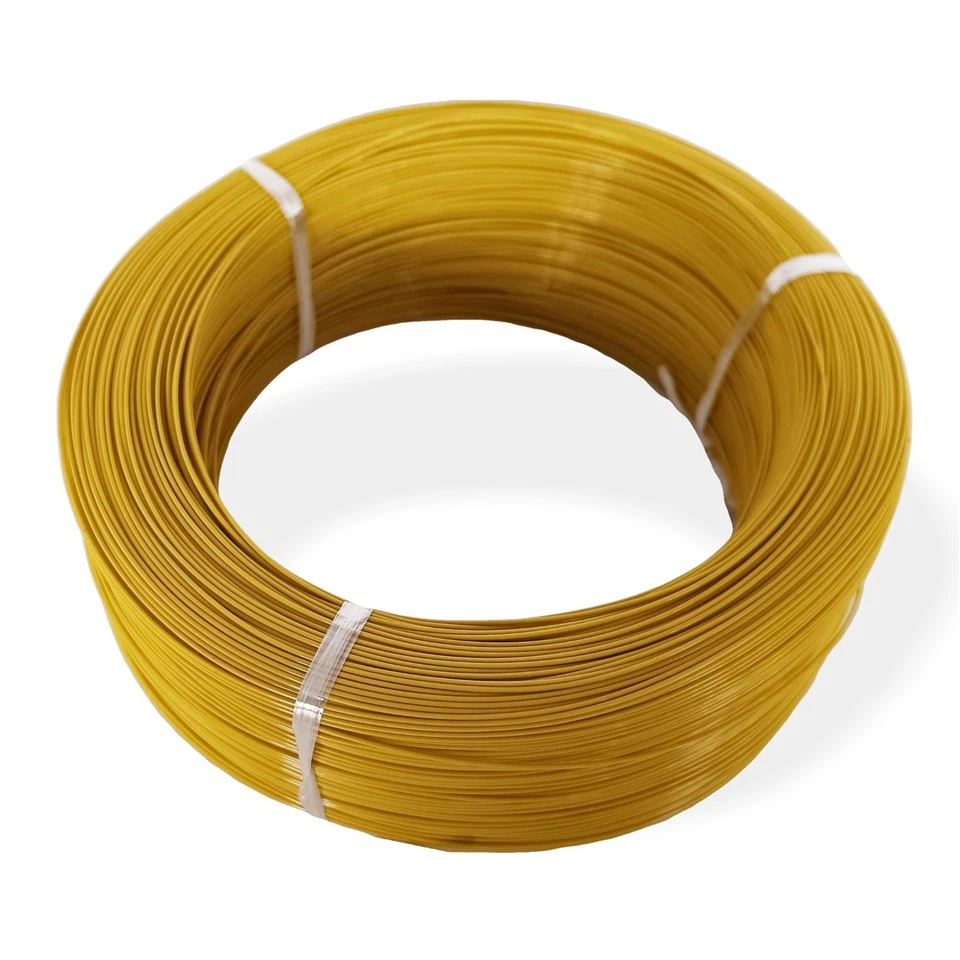

28AWG thin wire diameter design, flexible to adapt to the printer nozzle or miniature sensors and other compact space, while the conductor using stranded tinned copper structure, oxidation resistance and improve the stability of conductivity.

High physical strength, resistance to tensile and bending fatigue, not easy to deform (e.g., mobile device harnesses), reducing mechanical damage during installation or use.

3. Durability and Reliability Advantages
Aging Resistance and Long Life: service life up to 30 years under normal use conditions, UV and environmental aging resistance, reducing maintenance frequency and cost.
Environmental protection and compatibility: Comply with RoHS environmental standards, no harmful substances, while compatible with UL certified wire, to meet the global market access requirements.

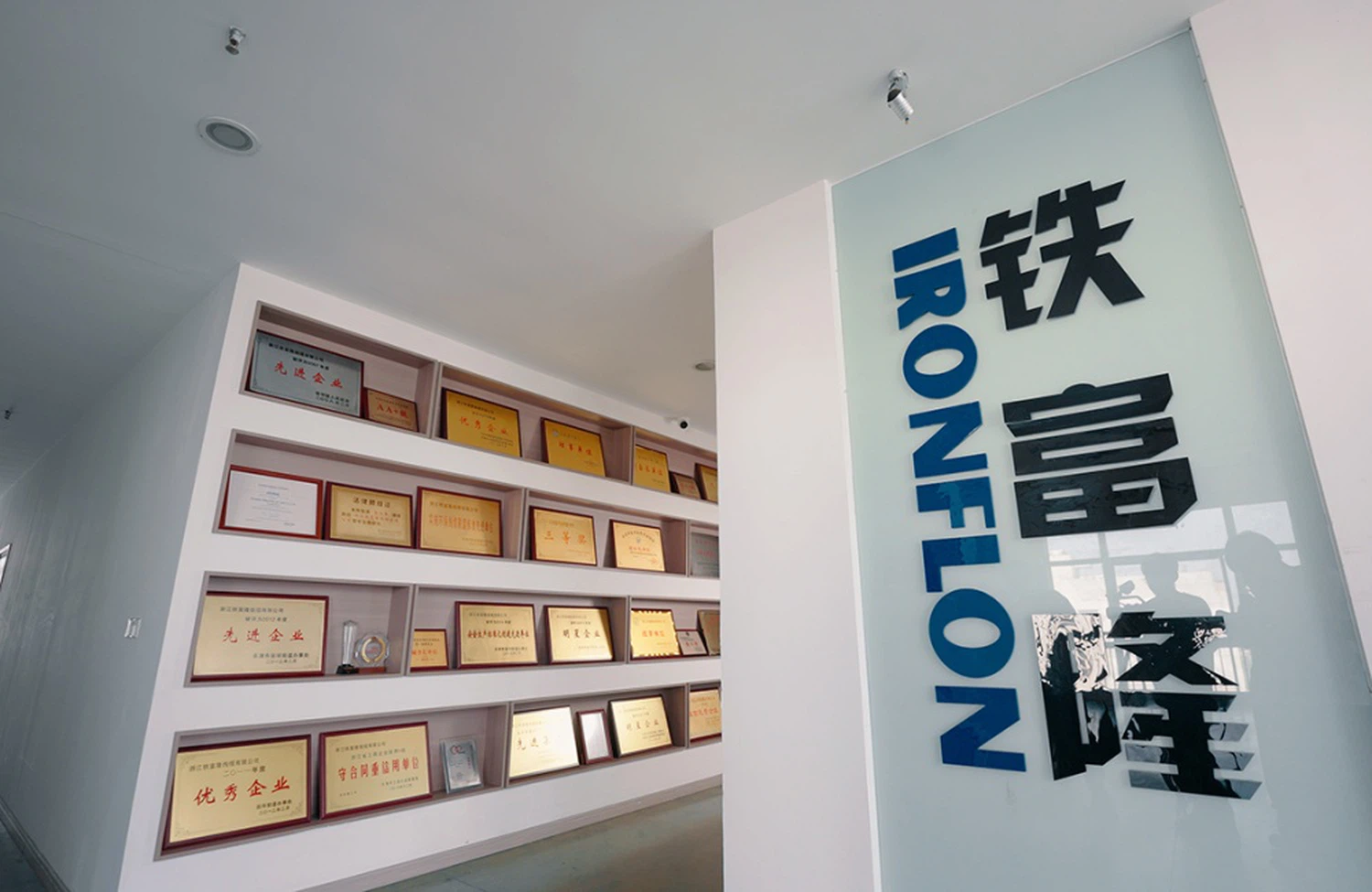

We've got a lot of certificates.

Awarded " WSF World Standard Certificate ".
Awarded " Growth oriented Technology Enterprise of YueQing ".
Awarded " Science and Technology Innovation Enterprise Certificate of YueQing ".
Awarded " Certificate of sci-tech enterprises in Zhejiang Province ".
Awarded " Integrity Business Enterprise Certificate ".
And so on.

1.Rich Experience

Able to quickly reach consensus on product development, production, and supply needs and provide corresponding solutions.

2.Research And Development

We attach great importance to investment in product research and development, build a scientific and reasonable R&D system, and closely meet the.

3.Our Service

We commit ourselves to providing our customers with superior quality, excellent service and competitive prices.

4.Provide Customization

Different specifications and functions can be customized according to customer requirements to meet the actual needs of customers.

5.Win-Win Cooperation

Adhering to the development strategy of growing together with well-known enterprises, we work together to forge ahead, develop together, and win the future together.

1. ROSH plastic film packaging to ensure that the goods meet ROSH requirements.

2. The common packaging quantity is based on our standards. If customers have special requirements, we can also customize it.

3.After the pallet is transported to the vehicle, it will be transported uniformly to the corresponding station.

4. We will choose different transportation methods according to the customer's needs.Such as sea freight, air freight, express delivery, etc.







Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer. We can control your order from the first begining to the last.

Q: Can I get a discount?
A: It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.

Q: What about the lead time for mass production?
A: Our production capacity is sufficient,normally 15-20 days we can deliver your order. only if quantity is big, we'll offer you.

Q: Can I Visit Your Factory Before The Order?

A: Yes, welcome to our factory to check the quality.

Q: What's your Minimum Order Quantity?
A: Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.
