Fire Resistant Wire
video
Fire Resistant Wire

Fire Resistant Wire

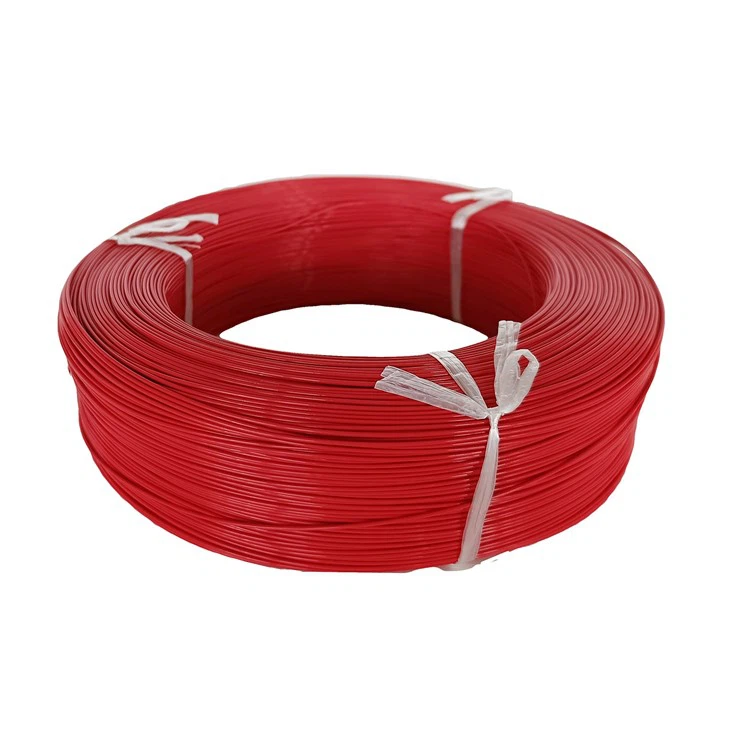

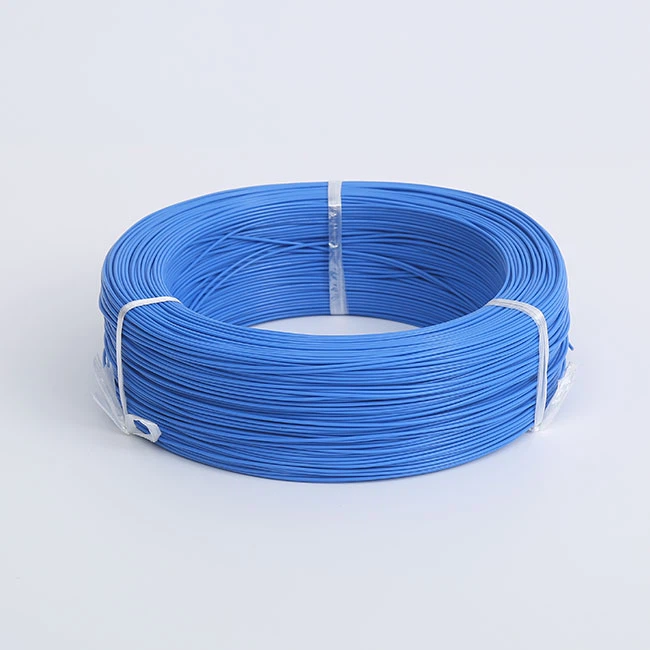

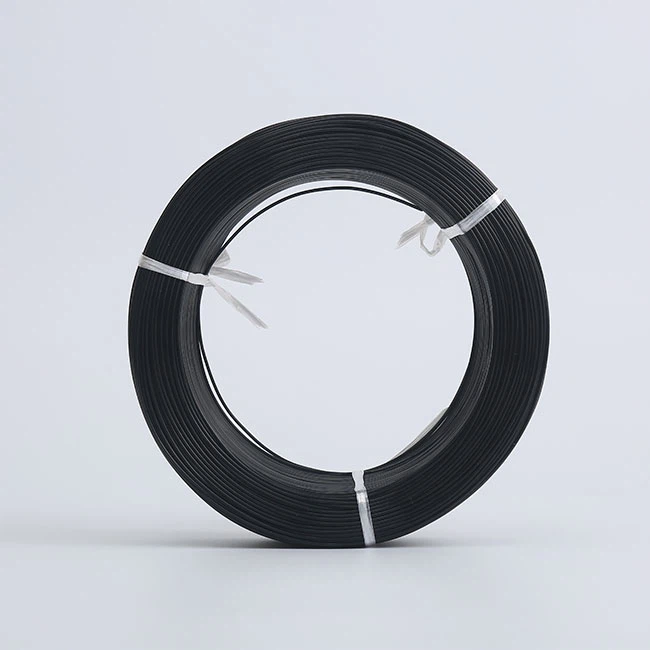

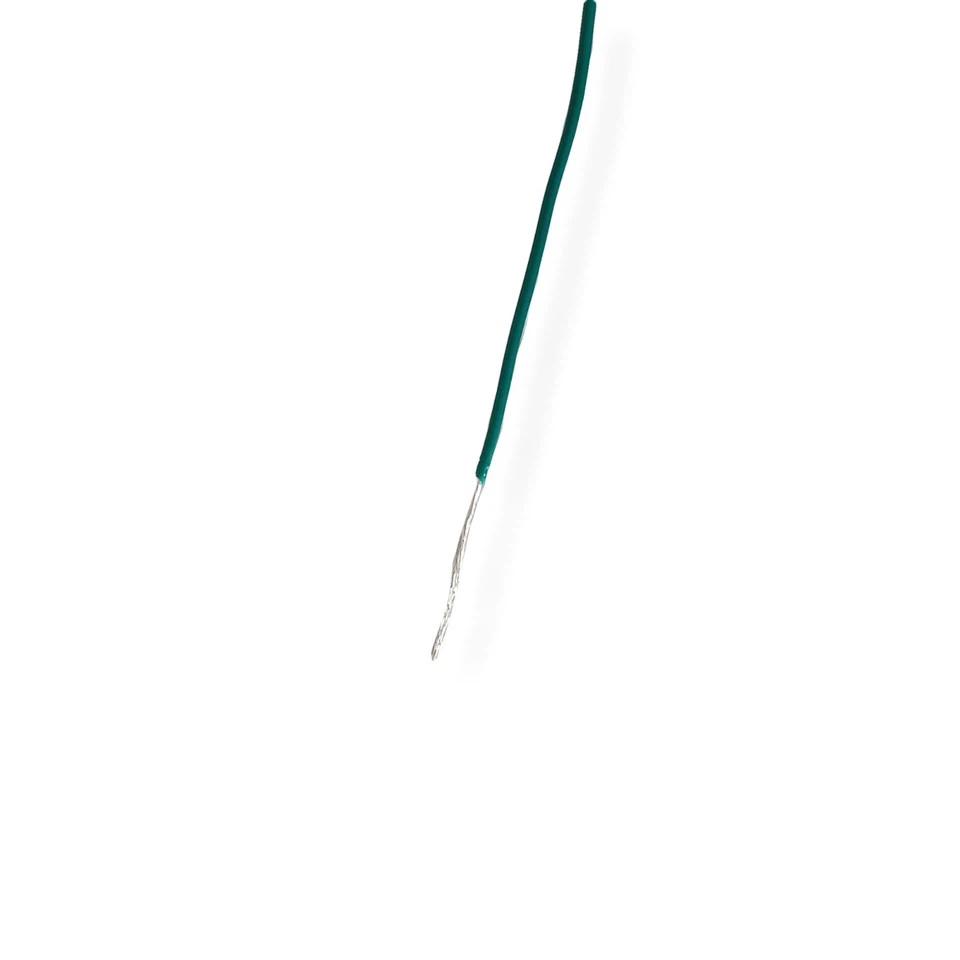

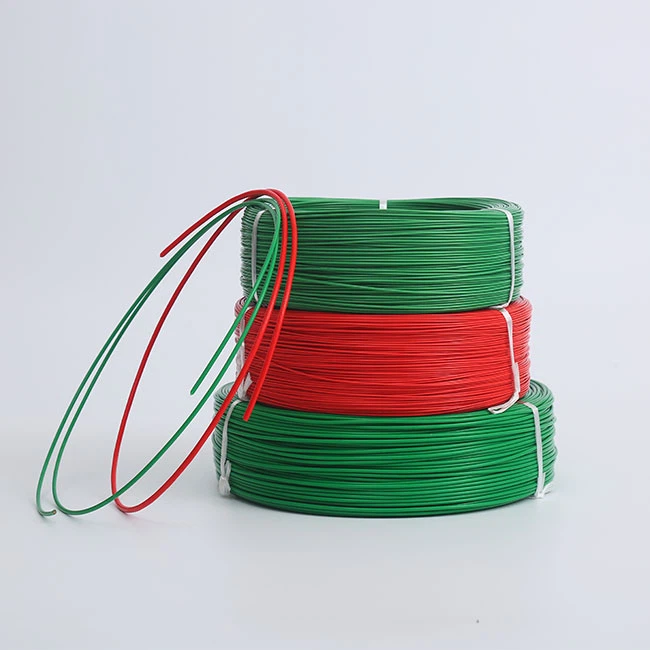

UL10588 Fire Resistant Wire Flame Retardant Cable (NH Cable)
UL File Number: E252458
Rating Temperature: 200 ℃
Rating Voltage: 600V Wire Gauge / Size: 30 AWG to 10 AWG
Conductor Material: Tin plated copper, silver plated copper, nickel plated copper (customizable)
Insulation Material: FEP

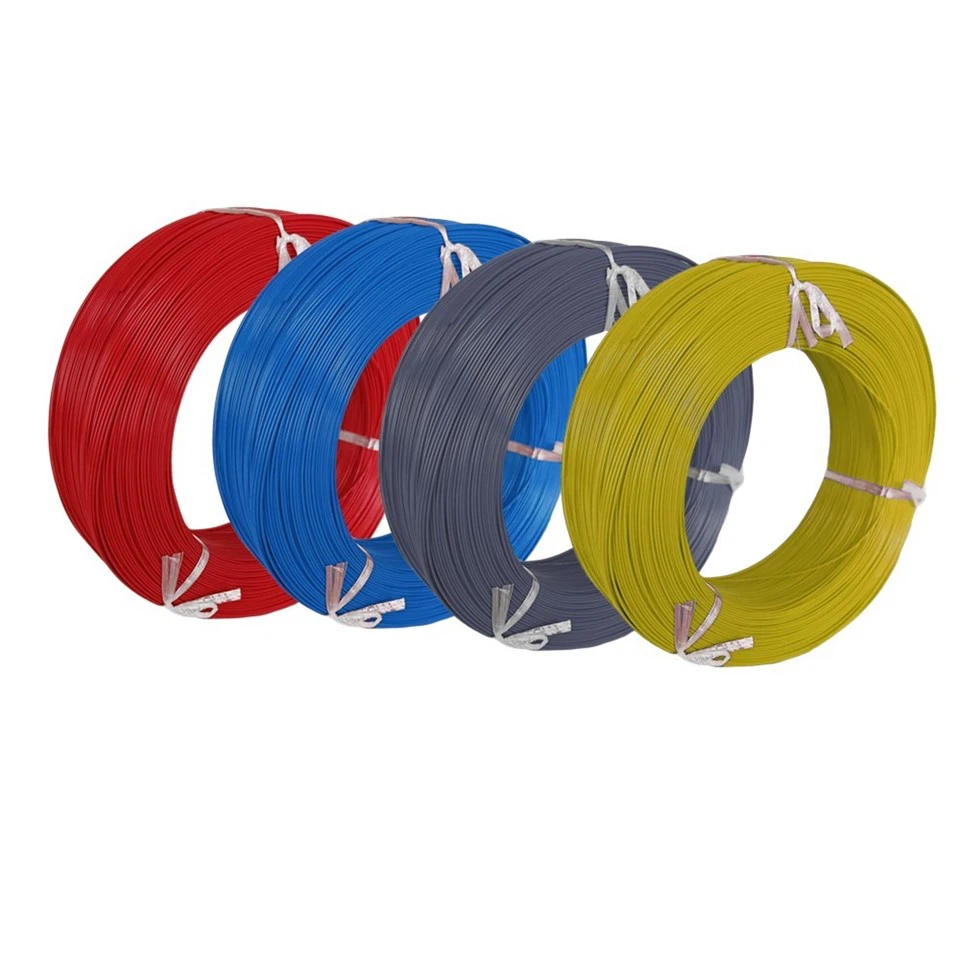

Color Options: Standard 10 colors available, supports customization

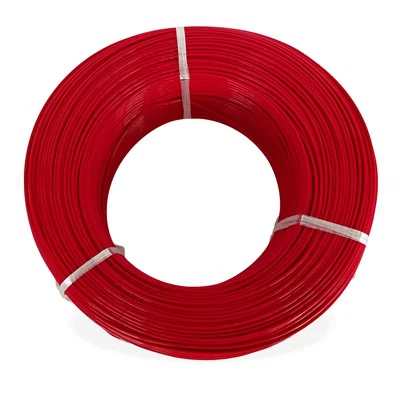

Standard Packaging: 2000 FT (610m) / Roll
Flame Rating: Passed UL VW-1 Vertical Combustion Test
Qualification Certification: UL, CUL, VDE, RoHS, ISO9001, SGS
Send Inquiry

Product Introduction

Zhejiang IRONFLON Wire & Cable Co., Ltd. is one of the most professional manufacturers and suppliers of fire resistant wire in China, also supports customized service. Please feel free to buy high quality fire resistant wire for sale here from our factory. Also, free sample is available.



UL10588 FEP insulated fire resistant wire uses fluorinated ethylene propylene (FEP) insulation combined with copper-based conductors to provide stable electrical performance in high-temperature and flame-exposure environments. The wire is available with tin-plated copper, silver-plated copper, or nickel-plated copper conductors, with customizable AWG sizes, insulation thickness, colors, and packaging options.

UL10588 Fire resistant wire Product Specifications



Parameter Value / Requirement
Certified Model UL10588
UL File Number E252458
Rating Temperature 200 ℃
Rating Voltage 600V
Wire Gauge / Size 30 AWG to 10 AWG (Stranded Conductor Construction, such as 22 AWG 19/0.15mm, 28 AWG 19/0.08mm)
Conductor Material Tin plated copper, silver plated copper, nickel plated copper (customizable)
Insulation Material FEP
Color Options Standard 10 colors available, supports customization
Standard Packaging 2000 FT (610m) / Roll
Flame Rating Passed UL VW-1 Vertical Combustion Test
Qualification Certification UL, CUL, VDE, RoHS, ISO9001, SGS

UL10588 FEP Insulated Fire resistant wire Technical Characteristics



Thermal Performance

FEP insulation maintains electrical insulation stability under continuous temperature exposure up to 200°C. The fluoropolymer structure provides resistance against thermal aging during long-term operation.



Electrical Performance

The low dielectric constant and stable insulation properties of FEP make this wire suitable for applications requiring consistent electrical characteristics under temperature variation.



Chemical Resistance

The FEP insulation layer provides resistance against acids, solvents, oils, and corrosive chemicals commonly found in industrial processing environments.



Flame Resistance

The wire structure complies with applicable flame-retardant testing requirements according to the selected UL specification.

Application Scenarios Of Flame Retardant Cable (NH Cable)

UL10588 Fire Resistant Wire Typical Applications

Industrial Heating Equipment

Used for internal wiring of industrial ovens, furnaces, heating controllers, and thermal processing equipment where conductors are exposed to elevated temperatures.



Semiconductor Manufacturing Equipment

Applied in internal control circuits, sensor wiring, and power connections inside semiconductor processing equipment requiring chemical resistance and thermal stability.



Automotive Electronics

Suitable for engine compartment wiring, battery thermal management systems, and sensor connection assemblies exposed to heat and vibration.



Laboratory and Analytical Equipment

Used in compact electrical assemblies, testing instruments, and analytical systems requiring stable insulation performance in heated environments.

Product Customization



Zhejiang IRONFLON provides customization for:

 Wire gauge and conductor construction

 Tin-plated / silver-plated / nickel-plated copper conductors

 Insulation thickness

 Outer diameter requirements

 Wire colors

 Cut lengths

 Packaging specifications

 Labeling requirements

Samples can be provided for engineering evaluation before mass production.

For more details, please contact customer service( luna@ironflon.com ).

Request A Fast Quote & Free Sample

UL10588 Wire Conductor Size, Resistance, And Current Carrying Capacity Reference Table

Manufacturing Process

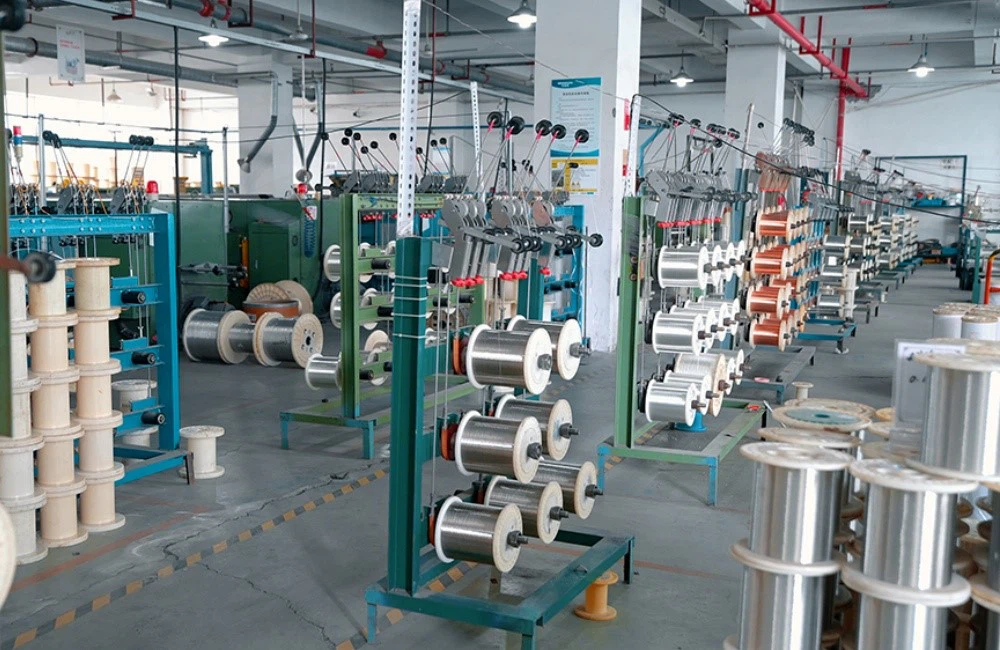

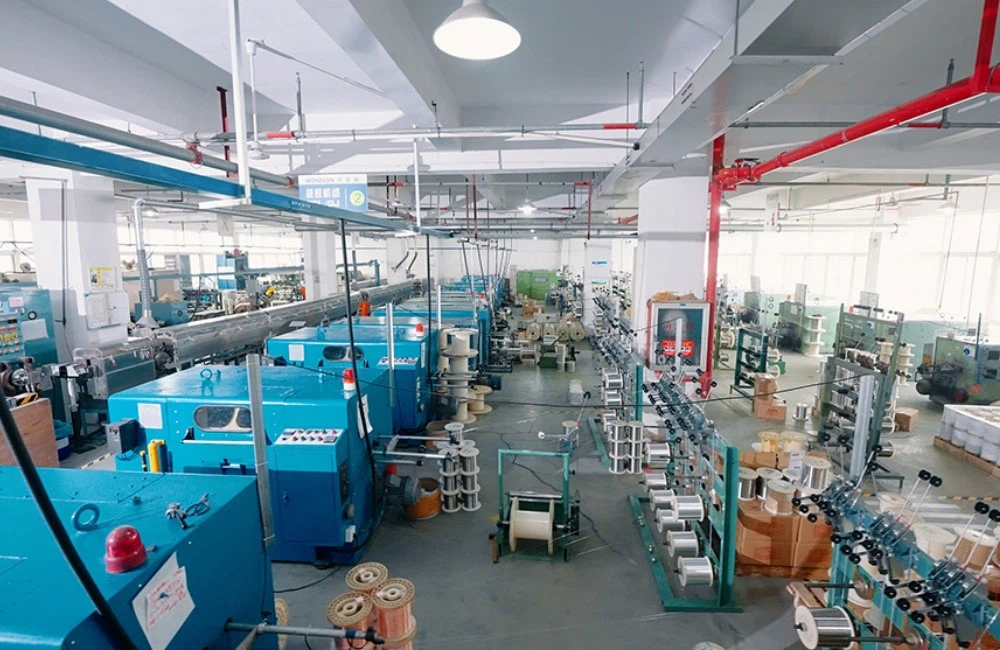

UL10588 Fire Resistance Wire Production Workshop
UL10588 Flame Retardant Cable Production Workshop

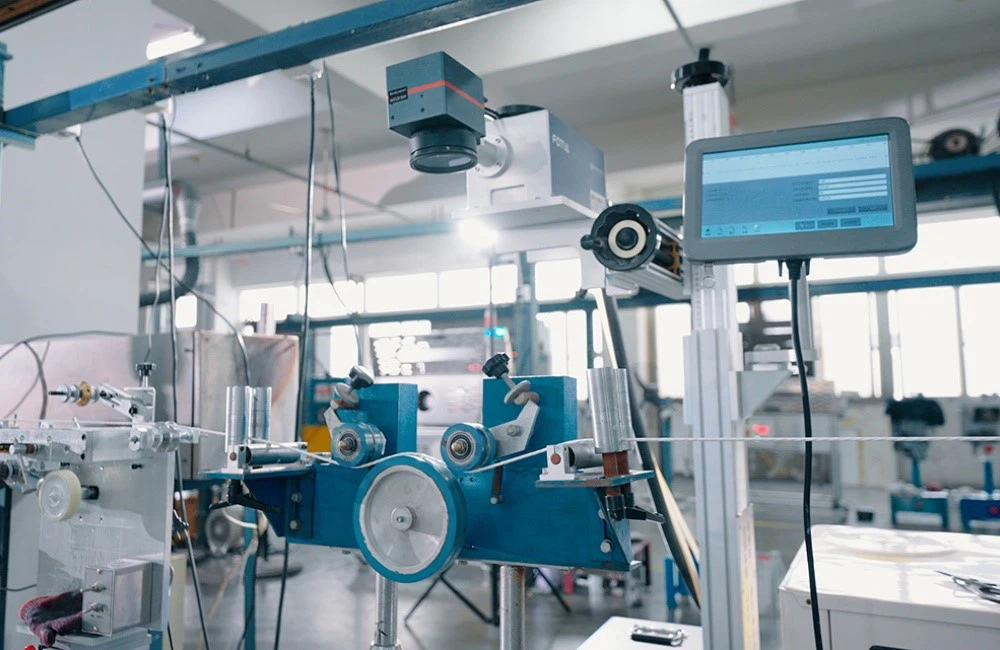

UL10588 NH Cable Inspection Laboratory
UL10588 Fire Resistance Wire Inspection Laboratory

Conductor Preparation

Copper conductors are processed according to required wire gauge and plating specifications, including tin-plated copper, silver-plated copper, and nickel-plated copper options.



Insulation Extrusion

FEP insulation is extruded using controlled processing parameters to maintain insulation thickness consistency and outer diameter tolerance.



Online Inspection

Production inspection includes conductor resistance testing, insulation thickness measurement, voltage withstand testing, and appearance inspection.



Final Quality Control

Each production batch is verified before shipment according to customer specifications and applicable certification requirements.

Certificates

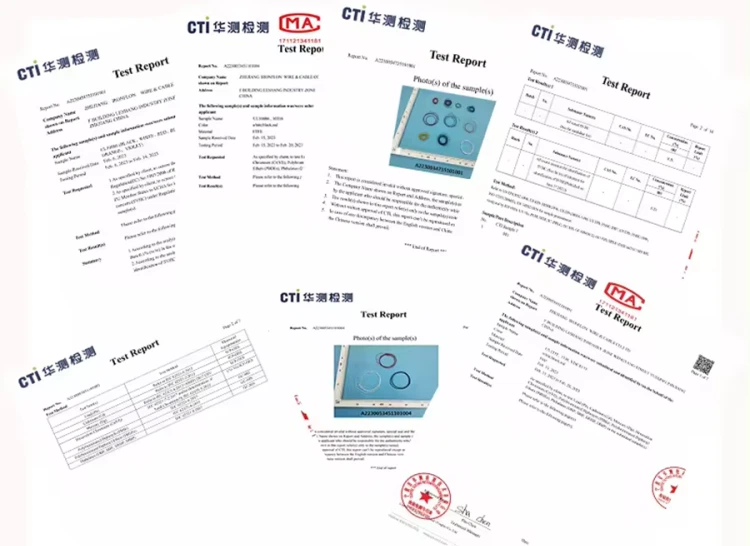

Fire resistant wire certificates

NH cable certificates

UL / CUL Certified: Reference File E252458

VDE Certified

Quality Management: ISO 9001:2015 & IATF 16949 (Automotive Grade)

Environmental Compliance: RoHS & REACH Compliant



We've got a lot of certificates.

Awarded " WSF World Standard Certificate ".

Awarded " Growth oriented Technology Enterprise of YueQing ".
Awarded " Science and Technology Innovation Enterprise Certificate of YueQing ".
Awarded " Certificate of sci-tech enterprises in Zhejiang Province ".
Awarded " Integrity Business Enterprise Certificate ".

Awarded " National High-tech Enterprise".

Awarded " Yueqing Patent Demonstration Enterprise".

Awarded " Yueqing Municipal Enterprise Technology Center".

Awarded " Provincial Small and Medium Technology Enterprise".

Awarded " Group Standard of Ethylene-Tetrafluoroethylene Copolymer for Wire and Cable and Optical Fiber Cable".

Awarded " Group Standard of High Voltage Battery Cable for New Energy Vehicle".

Awarded " Specialized and Specialized New Enterprise ".

Awarded " Provincial New Product".
And so on.

Why Choose UL10588 FEP Over PTFE or PVC Wire?



FEP vs. PVC: PVC degrades at temperatures above 105°C and releases toxic halogens when burned. UL10588 FEP withstands continuous 200°C heat and self-extinguishes instantly without dripping.

FEP vs. PTFE: While PTFE offers slightly higher temperature ratings (up to 260°C), FEP provides melt-processable smoothness, superior continuous extrusion lengths without seam flaws, higher dielectric clarity, and cost-efficient automated wire processing.

FAQ



Q: What is the lead time for standard and custom UL10588 orders?

A: Standard gauge (30–10 AWG) in standard colors is maintained in stock for sample dispatch within 24–48 hours. Custom conductor stranded structures, non-standard colors, or bulk orders typically ship within 7–12 business days.



Q: Can you provide custom conductor stranding and cut-to-length services?

A: Yes. We offer fully customizable conductor constructions (e.g., ultra-flexible 19-strand or 37-strand configurations), custom color striping, spool lengths, precutting, stripping, and tinning upon request.



Q: How does UL10588 differ from UL1333 FEP wire?

A: Both use FEP insulation and are rated for 200°C / 300V or 600V. However, UL10588 is specifically optimized for high-voltage dielectric applications with enhanced VW-1 vertical flame ratings and specialized insulation wall thicknesses suitable for heavy-duty industrial appliances.



Q: Do you support small MOQ orders and provide free samples?

A: Absolutely. We support small trial orders to help engineering teams validate prototypes. Free sample spools (10–30 meters) are available upon request-customers only cover international freight costs.



Q: What conductor materials are available for Flame Retardant Cable (NH Cable)?

A: The wire can be supplied with tin-plated copper, silver-plated copper, or nickel-plated copper conductors depending on electrical performance, temperature exposure, and application requirements.



Q: Can this FEP wire withstand direct contact with industrial chemicals and hydraulic oil?
A: Yes. The extruded FEP insulation layer has almost complete chemical inertness, allowing the wire to withstand the erosion of mineral oil, hydraulic oil, acids, solvents, and corrosive fuels.



Q: What conductor option is recommended for environments subject to high mechanical vibration?

A: For dynamic bending or high-vibration applications (such as motor leads or automated harness systems), finely stranded tinned copper conductors (e.g., multi-strand configurations) are recommended to improve flex fatigue performance compared to solid conductors.

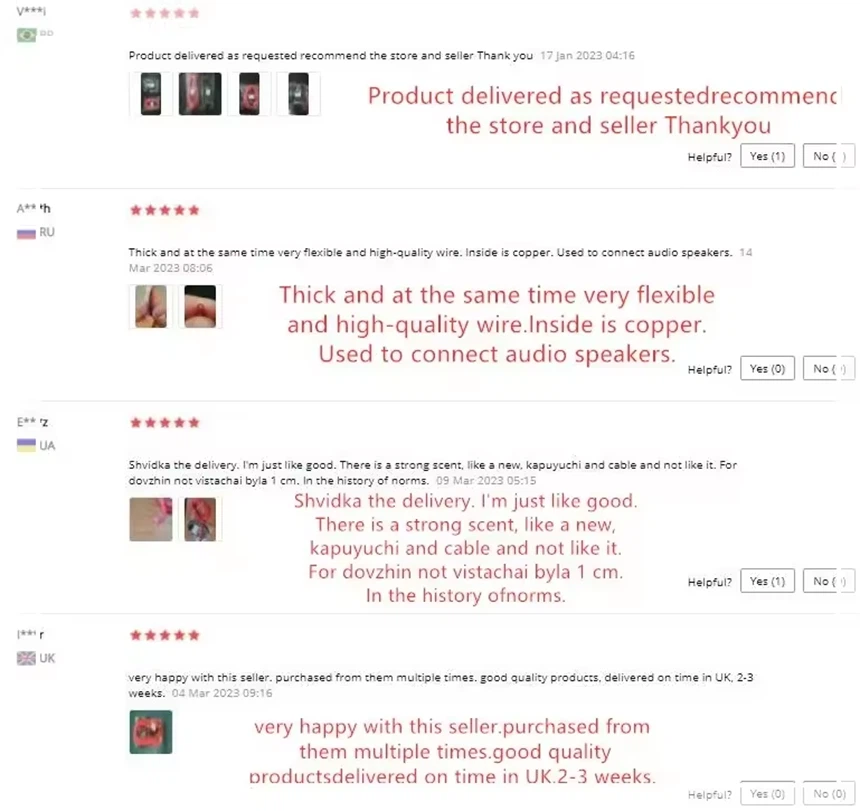

Customer Feedback

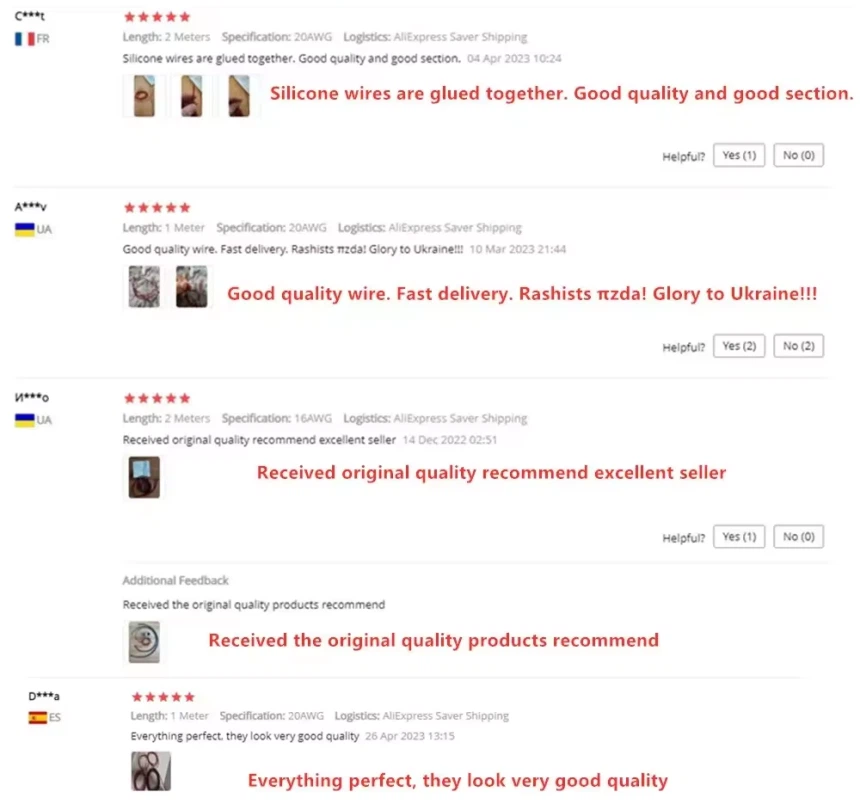

Fire resistant wire feedback

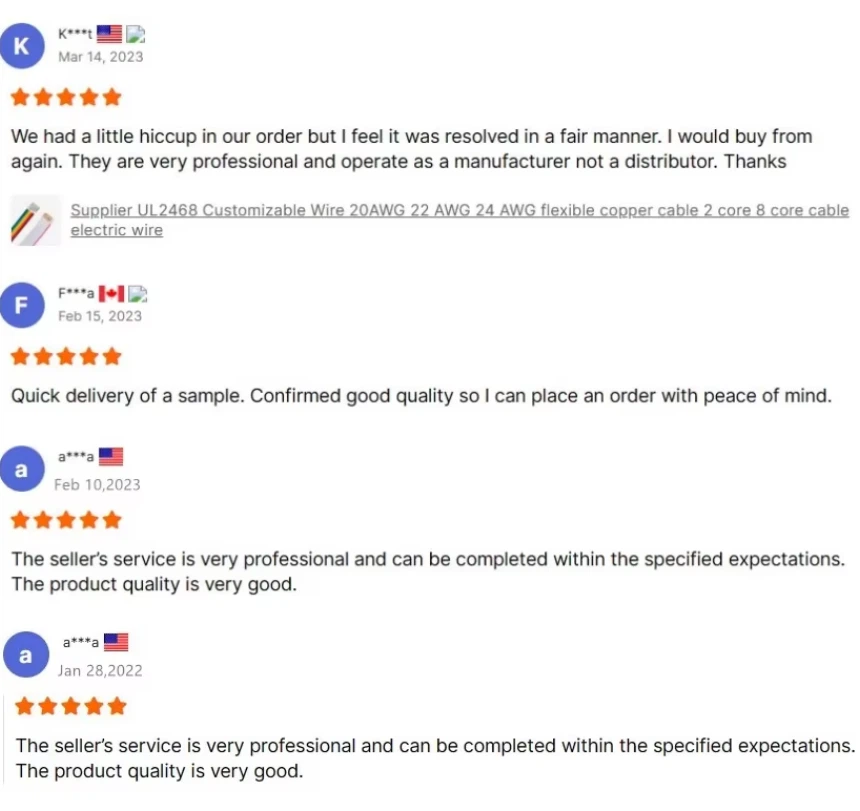

NH cable feedback
UL10588 Fire Resistant Wire feedback


'The cables exhibit excellent flexibility, facilitating effortless routing in confined spaces without any issues of insulation cracking or conductor breakage.'

'Their high-temperature resistance proves reliable. When deployed near motors for extended periods, the sheathing shows no noticeable hardening or deformation, ensuring safety and peace of mind.'

'Colours are accurate and varied, with clear markings that facilitate internal circuit identification and maintenance.'

'Exceptional value for money, meeting UL certification requirements while offering highly competitive pricing.'

'Supply is consistently reliable and timely. Multiple collaborations have proceeded smoothly, with thorough communication and service.'

'Comprehensive technical documentation and certification files were provided, enabling us to successfully pass our end-customer's audit.'
