1. The Structure Of The Heating cable
Structural Type
Legend
Structural Analysis

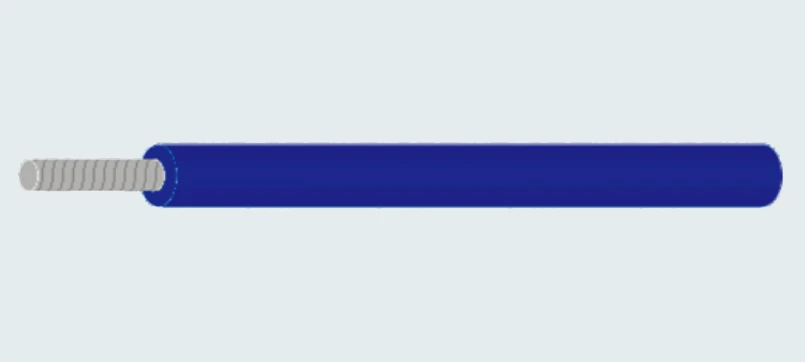

Resistance wire winding on the glass or organic fiber core shaft;
Fluorine plastic,TPE,silicone rubber insulation.
A - Resistance wire
Constant power Heating cable

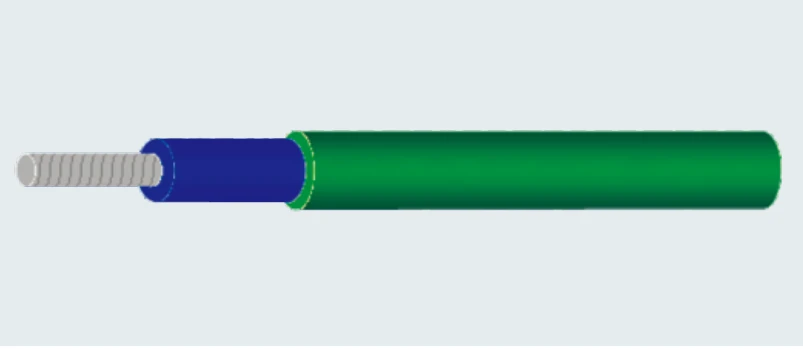

Resistance wire winding on the glass or organic fiber core shaft;
Fluorine plastic,TPE,silicone rubber,double insulation.

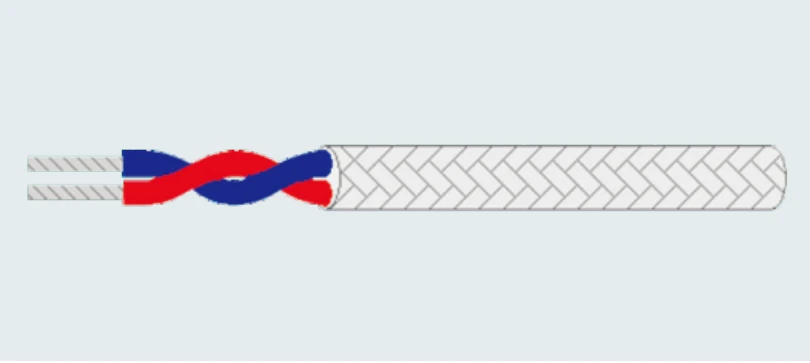

Resistance wire winding on the glass or organic fiber core shaft;Fluorine plastic,TPE,silicone rubber insulation,double core twisting.Stainless steel fiber braiding jacket.
Resistance wire winding on the glass or organic fiber core shaft;Metal wire braid shielding,Fluorine plastic,TPE,silicone rubberinsulated and sheathed.
B - Resistance wire
Constant power Heating cable
A pair of dominant lateral a group each additional heating wire;Fluorine plastic,TPE,silicone rubber insulation and sheath.
The two leading conductor of the lateral a group each additionalheating wire;Metal wire braid shielding,fluorine plastics,TPE,silicone rubberinsulated and sheathed.
2. The Application Of The Heating cable
Structural Type
Legend
The main features and application
Constant power Heating cable
A.B
Characteristics:the unit length of the wire of power is constant,the wire can be disconnected at any length and shall not affect the use, installation convenient installation,in addition to the temperature control to be used together with wire,no longer need to other auxiliary facilities.
Application:mainly used in petroleum,chemical industry of oil gas and viscous liquid pipelines,valves,and outdoor auxiliary heating equipment monitoring instrument of freeze protection;Secondly,usedin highway,railway and airport runway de-icing,home floor heating, hospital operating room floor heat insulation and constant temperatureelectric blanket,computer room,winter flower beds and nursery soil heat preservation,etc.
