Can UL1516 tin plated ETFE insulated wire be used in medical devices?

Medical equipment cables have always been a "high-barrier" sector in the industry. They need to withstand harsh conditions while ensuring electrical stability, and also meet safety and compliance requirements. Any slight oversight could affect the operation of the equipment or even the safety of patient care. Many medical equipment manufacturers and cable engineers often wonder: Can UL1516 tin plated ETFE insulated wire be used in medical scenarios?

The answer is: Under the premise of compliance, UL1516 tin plated ETFE insulated wire is a high-quality choice for internal wiring of medical equipment, suitable for most non implantable and non direct contact with bodily fluids medical devices.

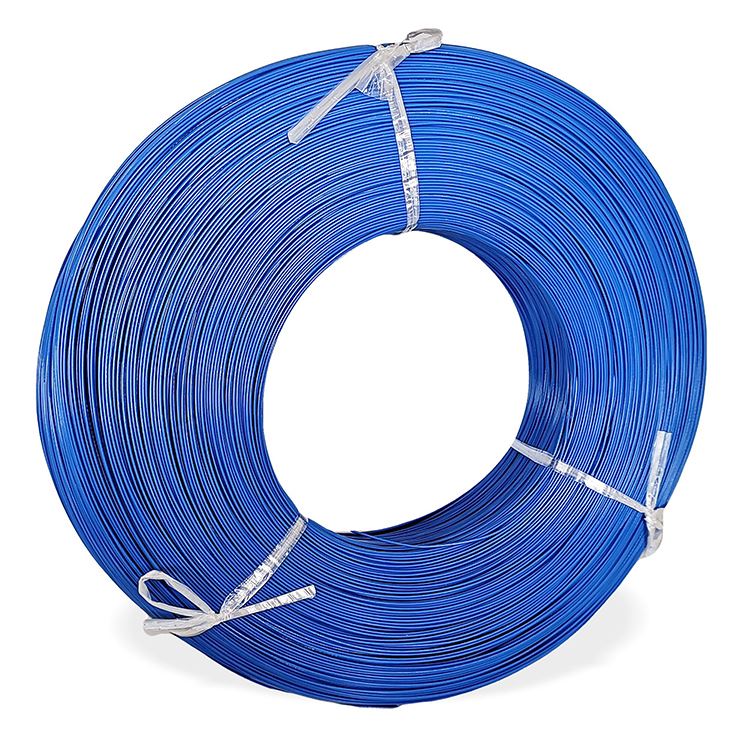

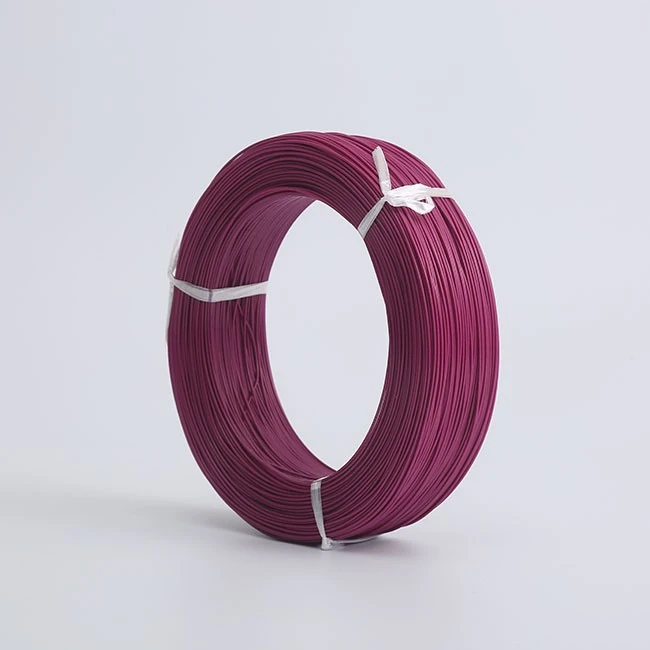

The UL1516 wire features a tin plated copper conductor + ETFE (ethylene-tetrafluoroethylene copolymer) insulation structure. It inherently possesses the essential properties of medical wire, perfectly meeting the demanding usage requirements of medical equipment:

Extremely resistant to weather and chemicals, suitable for medical disinfection scenarios
The ETFE insulation layer is resistant to acids, alkalis, disinfectants, and oil stains. Common disinfectants used in hospitals such as alcohol, iodophor, and chlorine-containing disinfectants will not corrode the insulation layer. After repeated disinfection, the insulation performance remains unchanged, eliminating the risks of leakage and short circuit; at the same time, it can withstand -80℃ cold and 105℃ heat, suitable for the low-temperature storage and high-temperature operation conditions of medical equipment.

Mechanical performance is outstanding, durable and reliable without any downtime.
Compared to ordinary PVC and PE cables, ETFE is highly resistant to wear, cut-through, and bending. In scenarios where medical equipment is frequently moved and plugged in and out, it is less likely to crack or break. The tin-plated copper conductor not only prevents oxidation and corrosion but also ensures long-term stable conductivity, avoiding signal distortion and power supply interruption caused by aging of the cable.

Safe flame retardancy + environmental compliance, meeting medical quality control standards
The wire passes the UL VW-1 vertical flame resistance test. When exposed to fire, it extinguishes itself without spreading, eliminating fire hazards. It also complies with the RoHS environmental standard, without any harmful substances being released, and is suitable for the clean production and use requirements of medical equipment, without causing pollution to the diagnosis and treatment environment.

Light and compact, suitable for miniaturization of medical equipment
The ETFE insulation layer is thin and has high mechanical strength. The outer diameter of the wire is smaller and the flexibility is better, which can be easily laid in the narrow cavities of precision medical equipment such as monitors, analyzers, and imaging devices. It does not occupy space and is easy to wire, helping to achieve lightweight design of the equipment.

Medical devices are classified into multiple grades. The application scenarios of UL1516 tin plated ETFE wire are clearly defined, and compliance can be achieved by avoiding prohibited scenarios:

Recommended application scenarios
Internal wiring and internal connections for medical monitoring devices, electrocardiogram machines, medical analyzers, medical radiation machines, laser diagnosis and treatment equipment, dental equipment, surgical room electronic equipment, medical testing instruments and other non-implantable and non-direct body fluid contact medical devices.

Prohibited / Cautious Scenarios
Implantable medical devices for the human body, invasive devices that come into direct contact with blood/body fluids, and core devices for life support (requiring specialized medical certification cables); This type of scenario requires the use of medical grade wires with special biocompatibility certification and higher levels.

To ensure that UL1516 tin plated ETFE wire performs stably in medical equipment, during the selection and procurement process, three core details must be controlled:

• Confirm genuine UL certification : Make sure to purchase cables with the official UL1516 certification mark. Reject products without any certification. Ensure that the insulation performance, flame retardancy, and conductor material meet the standards. This is the foundation for the safety of medical equipment.
• Prioritize the use of medical-grade clean cables : It is recommended to choose ETFE cables that are produced in a dust-free environment, have no odor, and have low impurity release. These cables are suitable for the assembly requirements of clean rooms for medical equipment and can prevent impurities from affecting the accuracy of the equipment.
• Matching voltage and specifications : The rated voltage of UL1516 cables is usually 30V/150V. When selecting, it is necessary to match the power supply voltage of the medical equipment. At the same time, choose the appropriate AWG specification based on the current size to ensure stable power supply and signal transmission.

UL1516 tin plated ETFE insulated wire is not an "all-purpose medical wire", but it is an ideal choice for non-invasive and conventional medical electronic equipment. It meets core requirements such as high temperature resistance, chemical resistance, anti-aging, and safety flame retardancy, and can both meet the strict working conditions of medical equipment and control the cost of the wiring harness. It is an excellent solution for internal wiring in precision medical equipment.
If your medical equipment is for routine testing, monitoring, or diagnosis purposes, and has no special biocompatibility or implantation requirements, feel free to choose the compliant UL1516 tin-plated ETFE wire. This will not only ensure the long-term stable operation of the equipment, but also pass the quality control review. It is both reassuring and reliable.

UL10109 Tinned Plated Copper Wire : Made with ETFE PTFE insulation and tin/silver plated conductors, it can withstand a wide temperature range and withstand harsh environments. Its electrical insulation performance is top-notch, with low signal attenuation, zero transmission distortion, chemical corrosion resistance, high cleanliness, and no impurity precipitation. It is the preferred signal wire for electrocardiogram monitoring, image transmission, and high-precision medical testing equipment, firmly guarding the accuracy of diagnosis and treatment data.
UL1643 High Heat Resistant Wire : Classic ETFE insulation structure, heat-resistant up to 150 ℃, with excellent wear resistance and chemical corrosion resistance. The conductor has strong oxidation resistance and does not turn black or decay after long-term use. It is a cost-effective choice for general wiring of medical equipment, suitable for conventional monitoring equipment, small diagnostic and treatment equipment, laboratory auxiliary equipment, with full stability and controllable procurement costs.
UL1558 Tin Stranded Wire : Features a thin-walled ETFE insulation design, with softer wire and a smaller outer diameter. It bends back quickly and is not prone to deformation, while still retaining the core characteristics of resistance to disinfection and high temperature. It is suitable for wiring in narrow spaces within medical equipment, dense line bundles, and is particularly suitable for portable diagnostic equipment, handheld monitors, and micro medical modules. It provides more efficient wiring without occupying cavity space.
